Driving license:	A1,A2,B2	Announcement Model:	BJ3184DLPFD-01
Drive type:	4X2	Wheelbase:	4100mm
Motor:	Yuchai YCS04200-66	Gearbox:	Fast 8JS85E
Rear axle ratio:	5.286	Body length:	7.5 meters
Body width:	2.4 meters	Vehicle Height:	2.71 meters
Front track:	1838mm	Rear track:	1865mm
Vehicle weight:	6.57 tons	Rated load:	11.235 tons
Total mass:	18 tons	Tonnage Class:	Medium card
Approach Angle:	23 degrees	Departure Corner:	18 degrees
Origin:	Shandong	Fuel Type:	diesel fuel
Engine parameters
Engine Model:	Yuchai YCS04200-66	Engine Brand:	Yuchai
Number of cylinders:	4 cylinders	Fuel Type:	diesel fuel
Displacement:	4.295L	Emission Standards:	National VI
Maximum horsepower:	200 hp	Maximum output power:	147kW
Container parameters
Cargo length:	4.85 meters	Cargo box width:	2.35 meters
Cargo box height:	0.6 meters	Cargo box form:	Dump
Bodywork parameters
Lifting Form:	Engineering top
Cab parameters
Cab:	Row in half	Cab width:	2060mm
Number of passengers:	3 people	Cab lift:	Manual
Transmission parameters
Transmission model:	Fast 8JS85E	Transmission brand:	Fast Priest
Gear Shifting Method:	Manual	Forward gear:	8 gears
Number of reverses:	2 pcs
Chassis parameters
Frame Size:	250×65×7+4mm	Front axle description:	3.6T
Permissible load on the front axle:	6500kg	Rear axle description:	1098Z
Permissible load on rear axle:	11500kg	Ratio:	5.286
Number of springs:	10/12+9
tyre
Tire Specifications:	9.00R20 16PR	Number of tires:	6 pcs

Dump Truck FOTON

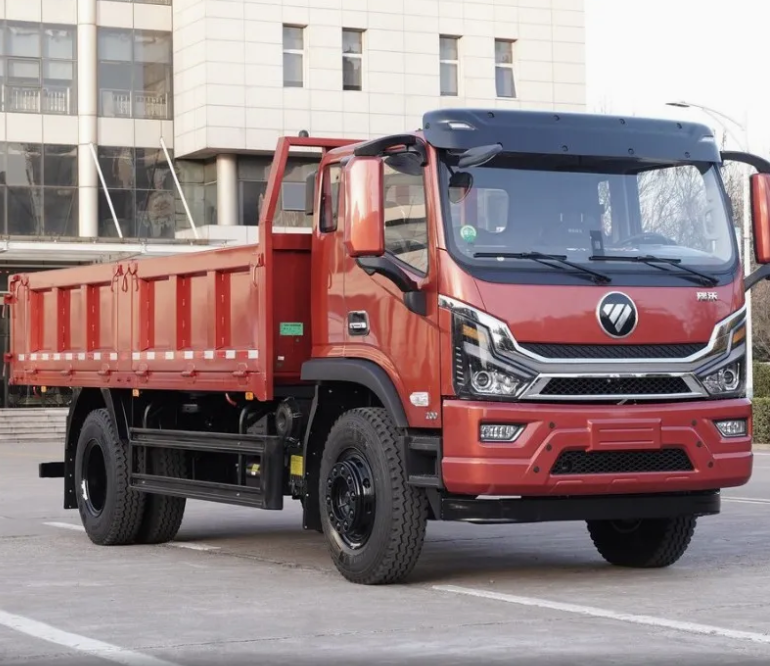

FOTON Ruiwo 4X2 Dump Truck

Model: 200

Dump Truck is a heavy-duty vehicle used to transport and unload bulk materials such as sand, gravel, soil, and ore. It is equipped with a hydraulic system that lifts the truck bed to discharge materials quickly and efficiently. Dump trucks are widely used in mining, construction, and road projects due to their high load capacity and reliable performance.

Brand

FOTON

Warranty

3 Years
