| Chassis Model | ZZ3168E3514C1(Left/ Right Hand Driving Type Optional) |
| Engine | Model: YC4E130-33, Euro 2, 130 HP |
| 4-cylinder in-line with water cooling, turbo-charging and intercooling | |
| Displacement: 4.726 L | |
| Clutch | Single-plate dry diaphragm spring clutch,diameter260mm,hydraulically operating with air assistance |
| Gearbox | Manual operation, WLY651, 6 forward and 1 reverse, with Power Take-Off (PTO) |
| Front Axles | 3200kg with drum brake system |
| Rear Axles | 8000kg, double stage reduction (central+ hub), cast axle housing |
| Suspension | Front suspension: 10 pcs leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer |
| Rear suspension: 12 pcs leaf springs with bogie spring and stabilizer | |
| Steering System | brand power steering, model 8118 , hydraulic steering with power assistance |
| Braking System | Front drum rear drum brake, four-circuit protection valve |
| Service brake: dual circuit compressed air brake | |
| Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels | |
| Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms | |
| Tires | 8.25R16, with one spare tyre |
| Fuel Tank Volume (L) | 200 |
| Dead Weight | 6548 |
| Gross Vehicle Weight (kg) | 16000 |
| Rated Loading Weight (kg) | 9865 |
| Overall Dimension | 7545x2550x3400 |
| (LxWxH) (mm) | |
| Wheelbase (mm) | 3800 |
| Min.Ground Clearance (mm) | 314 |
| Approach/Depart Angle(°) | 19/ (27/65) |
| Gradeability (%) | ≥50 |
| Min. Turning Diameter (m) | 15 |
| Cargo Body Size (LxWxH) (mm) | 3850*2200*1000mm |
| Remark (Engine Power Option) | 130HP; 160HP |
Dump Truck
HOWO

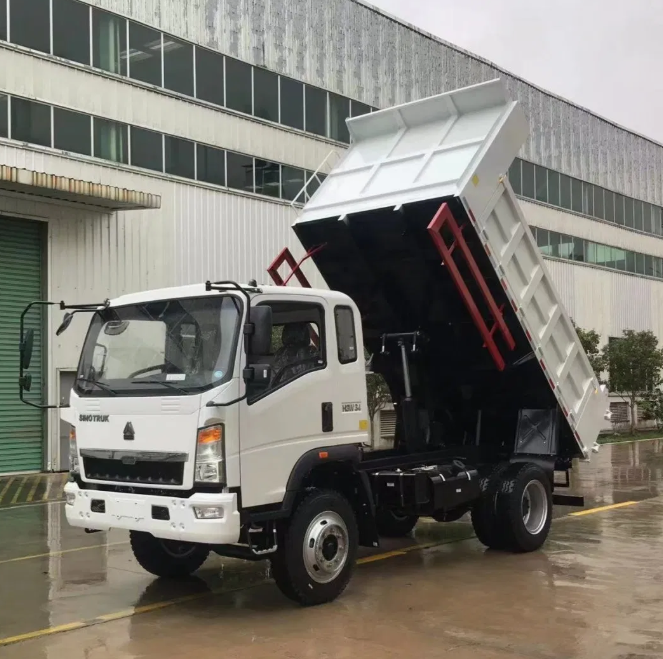

HOWO 4X2 Dump Truck
Model: 150
Dump Truck is a heavy-duty vehicle used to transport and unload bulk materials such as sand, gravel, soil, and ore. It is equipped with a hydraulic system that lifts the truck bed to discharge materials quickly and efficiently. Dump trucks are widely used in mining, construction, and road projects due to their high load capacity and reliable performance.
Brand
HOWO
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
