| Truck Model | SX3315MT366/SX3315MU366/SX3315MV366 |
| Truck Brand | SHACMAN-M3000 |
| Driving Style | Left Or Right Hand Driving |
| Dimension(Lx W xH)(unloaded) | 10500x2550x3500 |
| Overhang(front/rear) (mm) | 1525/1900 |
| Wheel base (mm) | 1800+3575+1400 |
| Max speed(km/h) | 70-90 |
| Curb weight(kg) | 17500-18500 |
| GVW(kg) | 70000-80000 |
| Fuel tanker capacity | 300L/380L/400L |
| Fuel consumption(L/km) | 50-60L/100 km |
| Clutch | Single-plate dry clutch Φ430mm |
| Fuel type | Diesel |
| Horse Power | 380hp/400hp/430hp |
| Emission | EURO II |
| Engine Model (Steyr technology, made in China) | WP10.380E22/WP12.400E201/WP12.430E201 |
| water-cooled,four strokes,6 cylinders in line with water cooling , | |
| directly injection | |
| Transmission Model | FAST 10JSD180,10 forwards and 2 reverse |
| FAST 12JSD200T-B,12 forwards and 2 reverse | |
| Steering system Model | hydraulic steering with power assistance |
| Front axle | 9.5T×2,Steering with double T-cross section beam |
| Rear axle | 16T×2,casting axle housing,central double reduction with differential locks between axles and wheels |
| Color | Optional (white,red,yellow,blue,green etc.) |
| Tyre | 12.00R20,315/80R22.5,13R22.5(12+1pieces) |
| Battery | 2X12V/165Ah |
| Alternator | 28V-2.24kw |
| Starter | 5.5Kw/24V |
| Cab | H3000 cab, (one sleeper,with air-condition) |
Dump Truck
SHACMAN

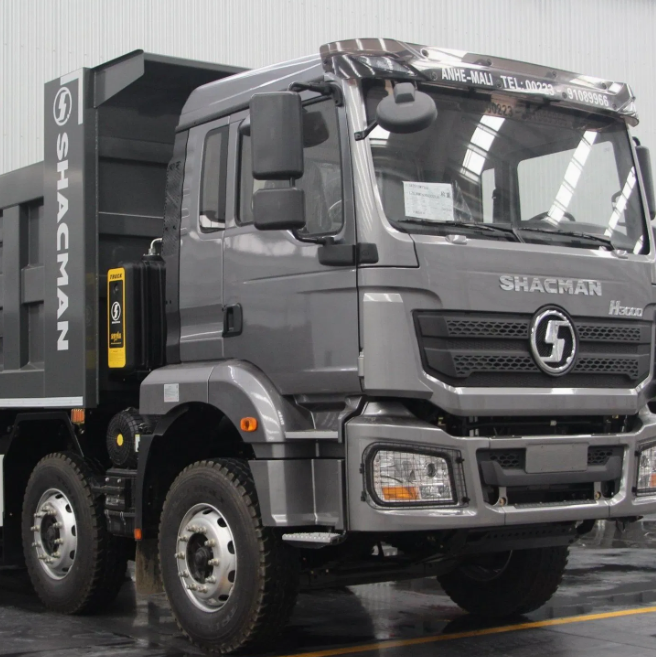

SHACMAN 8X4 Dump Truck
Model: H3000
Dump Truck is a heavy-duty vehicle used to transport and unload bulk materials such as sand, gravel, soil, and ore. It is equipped with a hydraulic system that lifts the truck bed to discharge materials quickly and efficiently. Dump trucks are widely used in mining, construction, and road projects due to their high load capacity and reliable performance.
Brand
SHACMAN
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
