| Product Brand | CLW | Announcement Batch | 390 |
| Product Name | DONGFENG Explosion-proof Dust Suppression Truck Mounted Fog Cannon | Product No. | DFH1180EX8 |
| GVW(Kg) | 18000 | Tank volume (m³) | 10 |
| Loading capacity(Kg) | 7220 | External dimensions(mm) | 9000*2550*3500(mm) |
| Curb weight(Kg) | 10650 | Front suspension/rear suspension(mm) | 1130/2440 |
| Number of passengers allowed in the cab | 3 | wheelbase(mm) | 4700 |
| Approach/departure angle(°) | 20/15 | Maximum speed(km/h) | 105 |
| Number of axles | 2 | Axle load(Kg) | 3000/5275 |
| Chassis | |||
| Chassis model | DFH1180EX8 | Chassis Name | Truck chassis (Class 2) |
| Emission standard | GB17691-2018 National 6 | Number of tires | 6 |
| Approach/departure angle(°) | 20/18,16/16,14/12,14/11,13/18,18/25 | Tire model | 10.00R20 18PR,275/80R22.5 18PR |
| Number of steel plate springs | 9/8+6,3/4+3,3/8+6,3/- | Front wheelbase(mm) | 17,051,730 |
| Fuel type | Diesel | Rear wheelbase(mm) | 1,615,163,017,151,800 |
| Engine model | Manufacturer of Engine | Displacement (ml) | Power (Kw) |
| B6.2NS6B230 | DONGFENG | 2780 | 154 |
| Others | |||
| Tank thickness (mm) | Wuhan Iron and Steel High Quality Carbon Steel (4mm Thick) | Operation method | Electric control/manual/ |
| remote control | |||
| Dust suppression equipment (nozzle) | Electric adjustable remote control water cannon | Flow rate (min) | 3 tons/minute |
| Effective range (m) | 50-60 | Coverage area (m²) | 2000 |
| Pump power (kw) | 4*18.5(Multiple sections stainless steel Centrifugal pump) | Generator power (kw) | 150 (six cylinders |
Trucks and Vehicles
DONGFENG

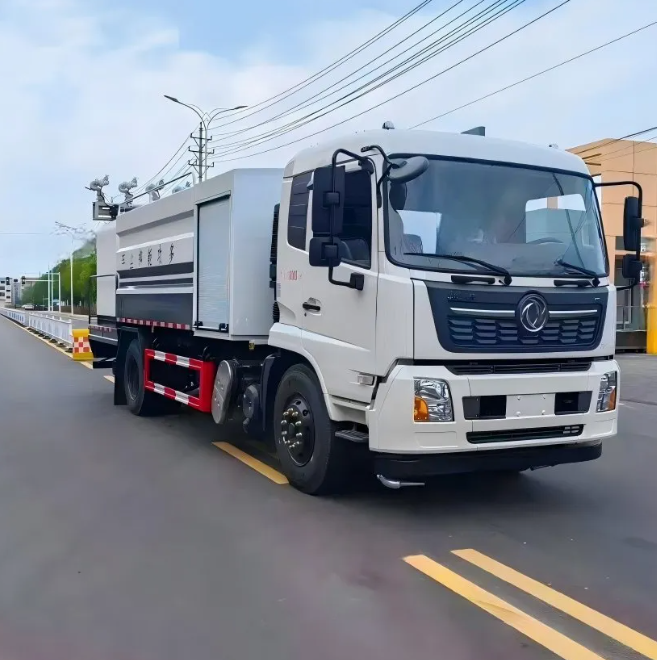

DONGFENG Water Tank Truck
Model: DFH1180EX8
Professional water tank trucks from China with reliable performance, customizable tank capacities, and worldwide export service.
Brand
DONGFENG
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
