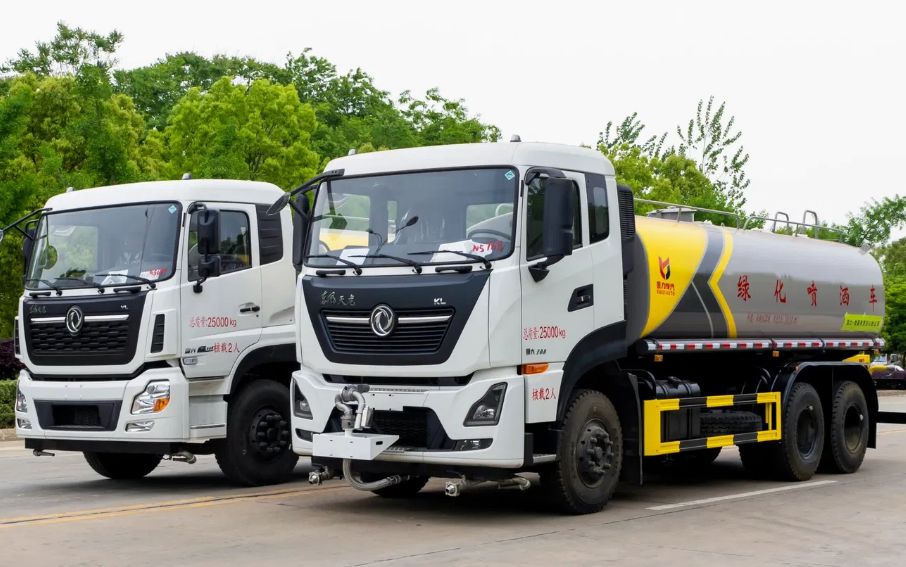

Factory Price Dongfeng 6*4 20m3 Water Tank Transport Truck for Sale

Overall dimension	1195525003150mm
GVW	25000kg
Curb weight	10805kg
Chassis brand	DENGFENG
Traction type	8*4, left/right hand drive
Chassis Description
Model	DF5310
Cab	Sleeper cab, forward control type, low roof, new face, all welded steel cab, electrical cab tilting, front and rear mechanical cab suspension, adjustable driver’s seat, air conditioning system, electrical windows, central lock.
Wheelbase	4700mm
Tire specification	11.00R20
Tire quantity	12+1 units
Engine	Engine model	Dongfeng Cummins
	Emission standard	Euro 2/Euro 3/Euro 4/Euro 5
	Exhaust/output	5900ml/169kw
	Horse power	230hp
Gear box	Model	5JS75
	Type	8 forward gears& 1 reverse, synchronized
Brake system	Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles; exhaust brake.
Axle	Front	3T-Elliot type, I beam section
	Rear	8T-Single reduction , ratio 4.875
Suspension	Front	8- Leaf spring with shock absorber
	Rear	(9+9)-Leaf spring
Battery	Voltage	12V*2
	Capacity	165A.h*2
Fuel tanker	Type	carbon steel tank with lockable cap
	Capacity	180L
Up-part discription
Tanker volume	10-12cbm
Tanker material	1.The inner layer is made of 4mm 304 Stainless Steel
	2.The middle layer of the tank is made of 80mm thick polyurethane
	3. The outer layer of the tank is made of stainless steel.
The temperature	The temperature rise or fall during transportation is less than or equal to 2
	degree within 24hours.
Automatic cleaning	Automatic cleaning system is adopted in the tank, and the cleaning device
system	rotates 360 degree to ensure no residual milk.
Optional configuration	ABS
	ETC
