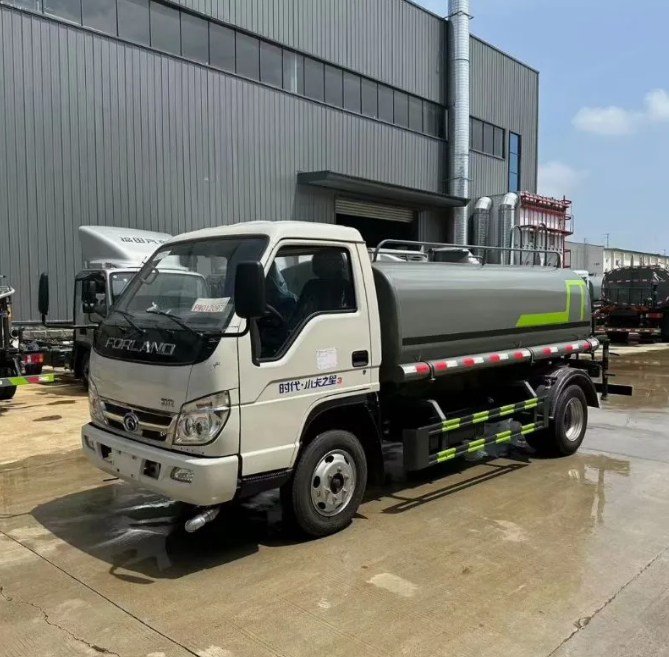

Foton Forland 5000L 5m3 5tons Water Tank Truck Water Bowser

Description	Forland 3/4/5m3 Water Carrier Truck/4X2 Tanker Water Spray Truck
Drive Model	4X2
Chassis	BJ1041SJ35D6
Number of axles	2
Vehicle Main Dimensions	Dimensions(L x W x H)(mm)	5995×2000×2300
	Wheel base (mm)	3300
	Overhang (front/rear) (mm)	1032/1663
	Wheel track (front/rear) (mm)	1506/1466
	Approach/Departure angle(°)	15/16
Weight in KGS	Curb Weight	2870
	GVW.	4495
Max. driving speed(km/h)		95
Engine	Model	CY4102-CE4F
	Type	4-stroke direct injection ,
		4-cylinder in-line with water cooling,
		turbo-charging and inter-cooling
	Horse Power(HP)	99HP
	engine capacity(ml)	3856
	Emission standard	Euro III
Gearbox	5 forwards & 1 reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Fuel tank (L)	180
Tire	7.00-16 tire , 6 + 1(spare)
Brakes	dual circuit compressed air brake
Tank
Material	Q235A Carbon steel
Medium	Water
Loading Capacity (m³)	4\5
Overall dimensions(mm)	3200×1500×1000
Thickness(mm)	5
Standard	1.Equipped with front,rear,side sprinkler
Equipment	(sprinkling width>14m )
	2.Equipped with rear working platform with water cannon
	which can be turned all-round (range>28m),can be adjusted into flinging,
	heavy rain,light rain,
	drizzle model, with security barrier.
	3.Equipped with CLW pump(suction lift>6m)
	4.Equipped with fire valve, water valve, and filter gauze
optional	5..Firefighting pipe
Equipment	6.Firefighting Pump
	7.The painting
