Main Items	Technical Parameters
Model	SXF5360GXFJX120/F-Attack
Overall Dimension	11700mm×3000mm×3850mm
Full Load Weight	39000kgs
Number of the Crew	5 (include driver)
Max. Speed	115km/h
Capacity	Front mounted monitor 20L/s, roof mounted monitor 80L/s
Fire pump flow rate	100L/s @ 10bar
Fire monitor	Front mounted monitor 20L/s, roof mounted monitor 80L/s
Painting	Fire Red
Main Items	Technical Parameters
Cabin
Structure	Single row cabin with 2 doors
Seats	5 seats with 3-point safety belt
Standardized Sub-frame
Material	High-strength rectangular tube made of special steel
Performance	The liquid tank and the sub-frame are connected by elastic connecting seats
Compartment
Material	High-strength aluminum alloy profiles
Structure	Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear
Roller Shutter Door
Material	Aluminum alloy profiles with anodized surface
Structure	With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors.
Superstructure Electric Appliance
Warning Light and Siren	Long-row warning light and siren are mounted above cabin. The controller is installed in the driver’s cabin.
Strobe Light	Mounted on the both sides of the compartment
External Lighting	LED lights are mounted on the both sides of the compartment
Roof Lighting	LED lights are mounted on the inside of the roof
Side Indicator Light	Inline yellow warning light is mounted on the side of the compartment and pedals

Fire Truck HARMAC

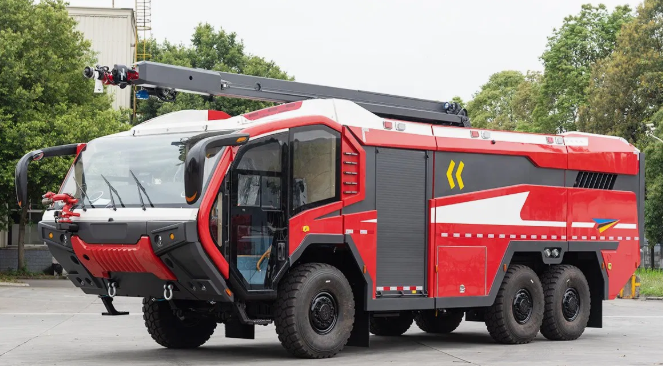

HARMAC Emergency Rescue Fire Truck

Model: SXF5360GXFJX120

Reliable Fire Fighting Vehicles for Municipal, Industrial, Airport, and Emergency Rescue Applications. Available in Water Tank, Foam, Rescue, and Custom Configurations

Brand

HARMAC

Warranty

3 Years

ISO CE Certified

Worldwide Shipping

Strict QC
