| ITEM | UNIT | PARAMETER | ||
| Vehicle | Swept body garbage truck | |||
| Overall dimensions | mm | 7570×2500×3350 | ||
| Tank volume | m3 | 8 | ||
| GVW | kg | Appro×16155 | ||
| Curb weight | Appro×9060 | |||
| Payload | Appro×7095 | |||
| Wheel base | mm | 4500 | ||
| Suspension | 1250/2400 | |||
| F/R track base | 1940/1860 | |||
| Approach/departure angle | ° | 25/21 | ||
| Max speed | km/h | 95 | ||
| Axle Load | kg | 6155/10000 | ||
| Tire specification | 10.00-20 / 7 Units | Number of axles | 2 | |
| Engine model | B190-33 | Diesel, 6 Cylinder, direct line, water cooling | ||
| Engine performance | ml/kw | 5900/140 | ||
| Steering | Power | Transmission | 6 speed with over drive, 6F&1R | |
| Cab passenger | 3 | Electric System | 24V | |
| Tank material | Carbon steel, side thickness 3mm, botton thickness 4mm | |||
| Standard configuration | 1. Hydraulic system powered by trucks chassis PTO | |||
| 2. Body with rear lifting system to handle garbage containers capacity 10m3 | ||||
| 3. Body painted 1 coat anti-corrosion primer and 2 coats synthetic paint | ||||
Hook Lift Truck
HARMAC

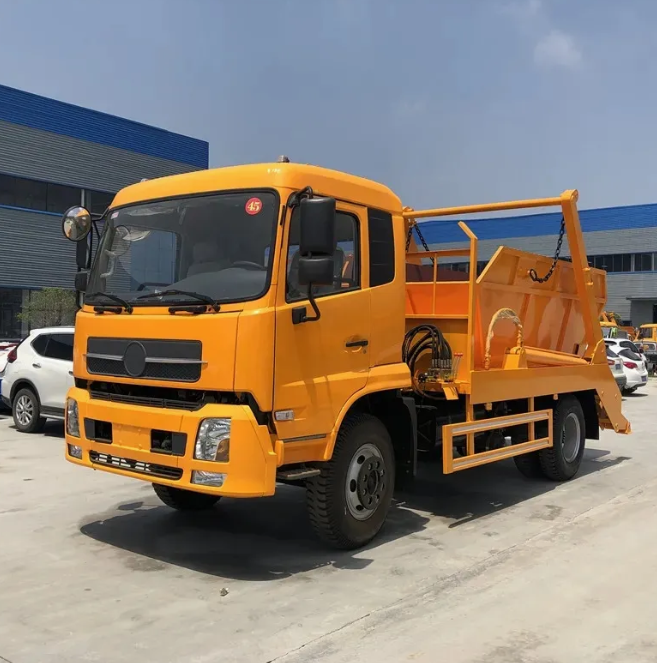

HARMAC Swing Removable Hook Roll Arm Skip Loader Compactor Garbage Truck
Model: HM821UGN31
The Hook Lift Truck is designed for fast and efficient container handling. It provides flexible operation, high payload capacity, and is widely used in waste collection, construction, and logistics.
