Item	Model			Unit	FD120	FD150	FD160
1	Power Type				Diesel	Diesel	Diesel
2	Rated Capacity			kg	12000	15000	16000
3	Load Centre			mm	600	600	600
4	Max Lifting Height			mm	3000	3000	3000
5	Fork Size		L×W×T	mm	1220×170×80	1800X180X90	1800X180X90
6	Mast Tilt Angle		F/R	Deg	6°/12°	6°/12°	6°/12°
7	Front Overhang (Wheel center to fork face)			mm	780
8	Ground Clearance(Bottom of mast)			mm	240	250	265
9	Overall Dimension		Length to face of fork(Without fork)	mm	4450	5770	5780
10			Overall Length(with fork)	mm	5800	7570	7580
			Overall Width	mm	2200	2750	2750
11			Mast Lowered Height	mm	2175	3500	3500
12			Mast height	mm	3300	3625	3625
13			Overhead Guard Height	mm	2570	2780	2780
14	Turning Radius (outside)			mm	4200	5800	5800
15	Speed		Travel (No load)	km/h	30	30	30
16			Travel (No load)	km/h	30	30	30
16			Lifting(Full load)	mm/s	290	300	300
17	Max.Gradeability (No load/Full load)			%	20	20	20
18	Tire		Front	mm	9.00-20-14PR	4X12.00-24/18PR	4X12.00-24/18PR
19	Tire		Rear	mm	9.00-20-14PR	2X12.00-20/18PR	2X12.00-20/18PR
20	Wheel Tread		Front	mm	1600	2060	2060
21	Wheel Tread		Rear	mm	1700	2330	2330
22	Wheelbase			mm	3000	3800	3800
23	Self weight			kg	13500	20000	21000
24	Battery	Voltage/Capacity		V/Ah	2*12/80	2*12/80	2*12/80
25	Engine	Model			6BT5.9-C130	Cmmins 6BTAA5.9-C190	Cmmins 6BTAA5.9-C190
26		Manufacture			Cummins	Cummins	Cummins
27		Rated output/r.p.m.		kw	97/2200	142/2200	142/2200
28		Rated torque/r.p.m.		N·m	560/1500	800/1500	800/1500
29		No.of Cylinder			6	6	6
30		Bore×Stroke		mm	102*120	108*135	108*135
31		Displacement		L	5.9	7.8	7.8
32		Fuel Tank Capacity		L	135	200	200

Diesel Forklift HARMAC

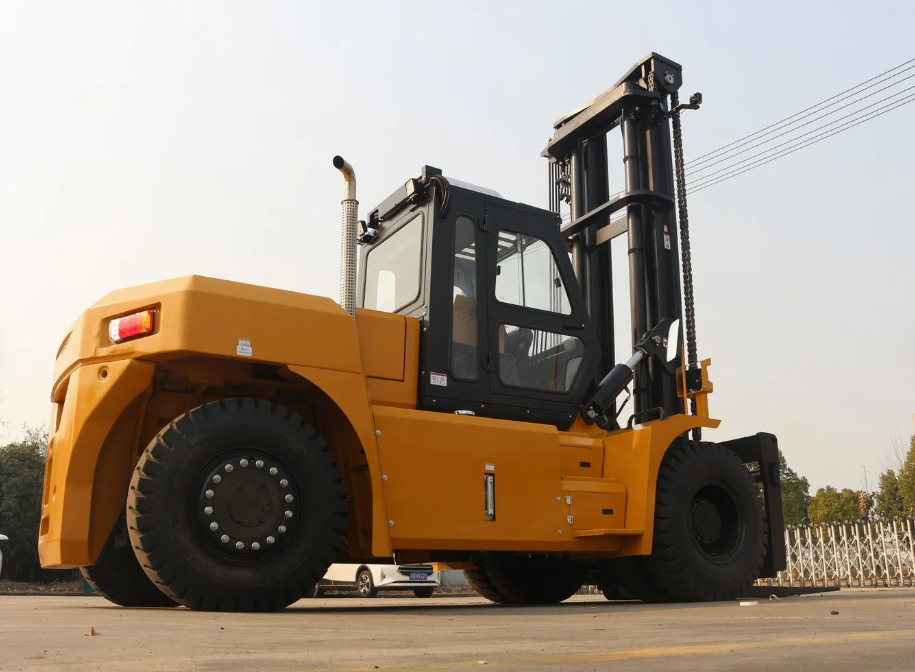

15 Ton Diesel Forklift

Model: FD150

Diesel forklift designed for heavy-duty material handling, featuring high load capacity, fuel efficiency, and stable performance for warehouse and construction applications.

Brand

HARMAC

Warranty

3 Years

ISO CE Certified

Worldwide Shipping

Strict QC
