| Model | FD20 | FD25 | FD30 | FD35 | |||
| Rated capacity | kg | 2000 | 2500 | 3000 | 3500 | ||
| Load center | mm | 500 | |||||
| Gearbox change speed type | Hydraulic/ Mechanical | ||||||
| Power type | Diesel | ||||||
| Tire type | Front/ Rear | Pneumatic | |||||
| Wheels | Front Rear | 2/2 | |||||
| Lift height | mm | 3000 | |||||
| Free lift height | mm | 140 | 145 | ||||
| Fork size | L*W*T | mm | 1070x120x40 | 1070x120x45 | 1070x125x45 | 1070x130x45 | |
| Mast tilt angle | Fwd/Bwd | deg | 6/12 | ||||
| Overall length (without fork) | mm | 2510 | 2580 | 2720 | 2775 | ||
| Overall width | mm | 1150 | 1225 | ||||
| Mast height fork lowered | mm | 2050 | 2080 | 2230 | |||
| Overall height fork raised | mm | 4040 | 4272 | ||||
| Overall height (overhead guard) | mm | 2060 | 2090 | ||||
| Turning radius (outside) | mm | 2170 | 2240 | 2460 | 2540 | ||
| Load distance (centerline of front axle to front face of forks） | mm | 484 | 489 | 494 | 500 | ||
| Max.Gradeability | % | 20 | 15 | ||||
| Self weight | kg | 3550 | 3880 | 4380 | 4750 | ||
Diesel Forklift
HARMAC

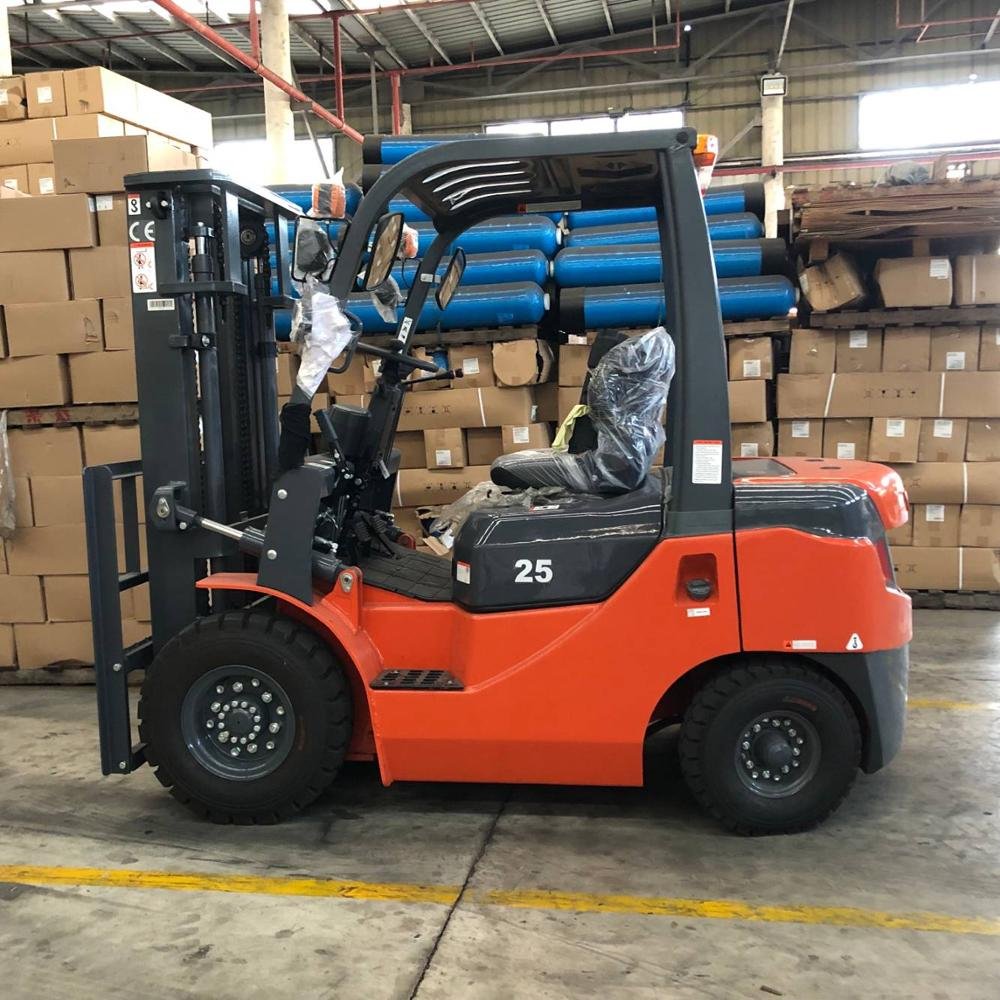

2.5 Ton Diesel Forklift
Model: FD25
Diesel forklift designed for heavy-duty material handling, featuring high load capacity, fuel efficiency, and stable performance for warehouse and construction applications.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
