Model #	SQ6000ZB6 /knuckle crane 150ton at 4m
Model #	SQ6000ZB6 /knuckle crane 150ton at 4m
Max Lifting moment	6000Kn.m
Max Lifting Capacity	150000/4
	115000/5
	94000/6
	30000/14
Max Lifting Height	16.5m
Max Working Radius	14m
Boom Section	6 stages
Rotation Angle	360°All Rotation
Rated Working Pressure	28mpa
Oiltank Capacity	400L
Related Oil Flow	110 L/min
Outrigger Span	2170-8000mm
Outrigger	adjustable, Hydraulic operating.
Crane Weight	42600kg
Installation Space	4500mm
Swing type	Planetary gear reduction
Safety Device	Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device.
Options	Aux. winch, Aux.Boom, Remote control
Material	HG785D
Truck for reference

Cabin	Driving type: 8×4, Left-hand drive (Right-hand drive type can be customized)
Cabin	Color is optional
Vehicle Main Dimensions	Overall size (L x W x H)	11950x2500x3800 mm
	Wheelbase	1800+4600+1350 mm
	Cargo Body	6800x2350x500 mm
Weight in KGS	GVW	31000 kg
	Tare weight	14500 kg
	Front axle loading capacity	2 x 7000 kg
	Rear axle loading capacity	2 x 16000 kg
Engine	Type	Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power	371HP (273kw)
	Max Torque	1500N.m
	Emission standard	Euro II
Max Speed	102 km/h
Gearbox	manual gearbox with 10 forwards & 2 reverses, with PTO
Tire	12R22.5 tubeless tire, 13 pieces including one spare tire

Lifting Equipment HOWO

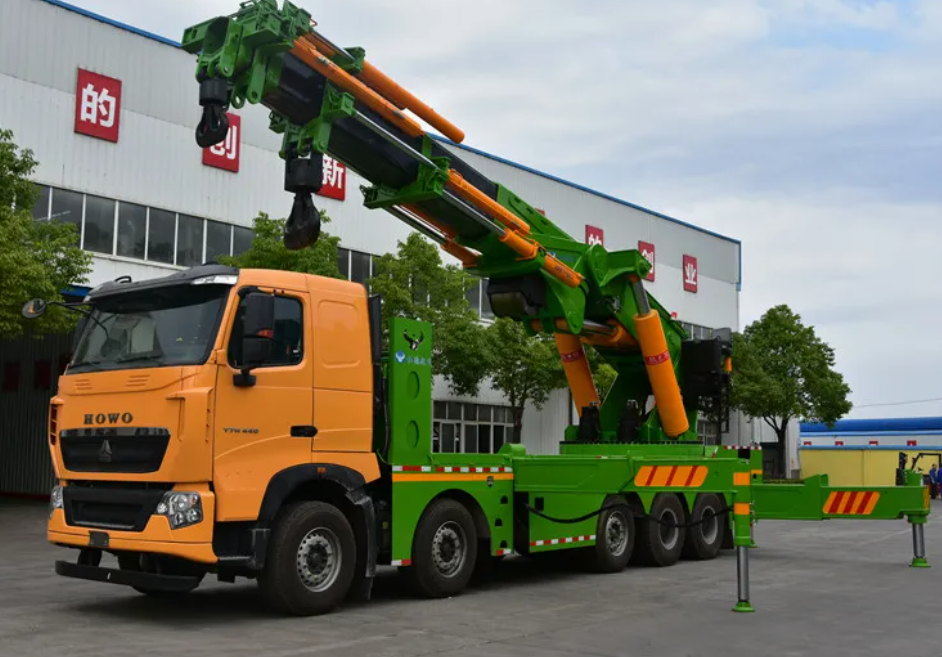

150 Ton Truck Mounted Crane

Model: SQ6000ZB6

A Truck Mounted Crane is a lifting machine installed on a truck chassis, combining transportation and lifting capabilities in one efficient unit. It is designed for loading, unloading, and transporting heavy materials while providing flexible lifting operations at different job sites.

Brand

HOWO

Warranty

3 Years

ISO CE Certified
