| Model | CPD25 | |
| Power type | Battery | |
| Rated load | 2500KG | |
| Load center distance | 500mm | |
| Driving type | Seat | |
| Length | With fork | 3380mm |
| Without fork | 2310mm | |
| Whole Width | 1150mm | |
| Height | Height no lifting frame | 2000mm |
| Top frame height | 2145mm | |
| Max heightworking | 3995mm | |
| Distance from seat to top light | 1020mm | |
| Wheel base | 1515mm | |
| Front overhang | 483mm | |
| Back overhang | 400mm | |
| Front wheel tread | 970mm | |
| Back wheel tread | 950mm | |
| Min Floor clearance | 135mm | |
| Max lifting height | 3000mm | |
| Free lifting height | 170mm | |
| Fork changing | 1024mm/200mm | |
| Min Turning radius | 2050mm | |
| Min Right angle aisle width | 3760mm | |
| Frame angle a/β | 6°/12° | |
| Max lifting speed without goods | 380mm/s | |
| Max lifting speed with full goods | 280mm/s | |
| Max speed without goods | 15Km/h | |
| Max speed with full goods | 14Km/h | |
| Max climbing angle | ≤15% | |
| Whole weight | 4200Kg | |
| Driving Wheel | 2x/2 | |
| Tyre model | Solid tyre | |
| Front Tyre | 7.00-12 | |
| Rear Tyre | 18×7-8 | |
| Hand Brake | Hydraulic Pedal | |
| Brake type | M-Hand | |
| Battery Volt/ capacity | 48/500V/Ah | |
| Driving motor power | 11.0KW AC | |
| Pump power | 12.0KW AC | |
Electric Forklift
HARMAC

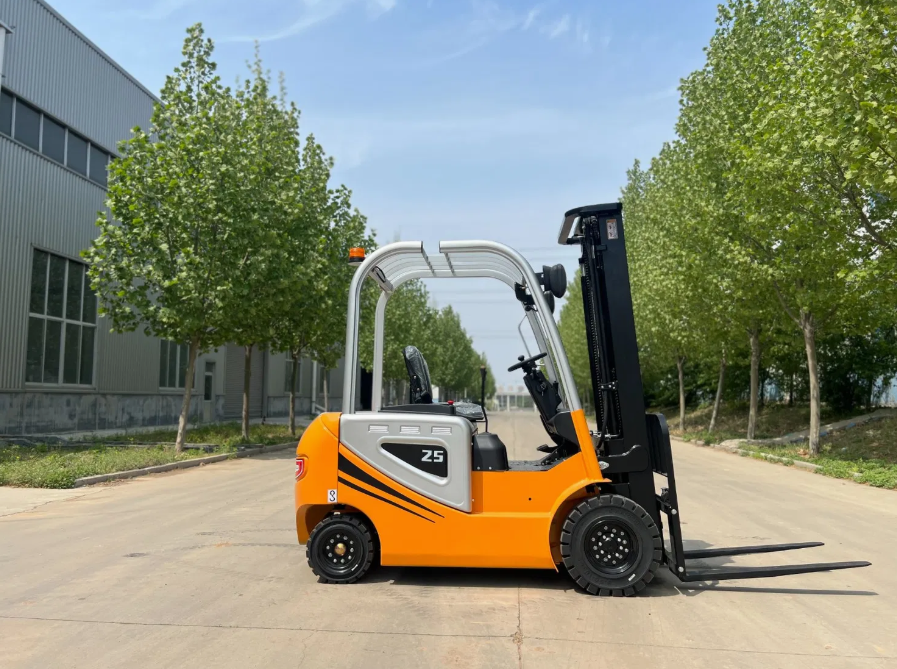

2.5 Ton Electric Forklift
Model: CPD25
An Electric forklift is a battery-powered material handling vehicle designed for efficient, low-emission lifting and transportation operations. Compared with internal combustion forklifts, it operates with zero exhaust emissions, low noise levels, and reduced maintenance requirements, making it ideal for indoor environments.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
