Features	1	Manufacturer			LTMG
	2	Model			FD100
	3	Load capacity		kg	10000
	4	Load center		mm	600
	5	Power unit			Diesel
	6	Operator type			Driver/seat
	7	Tire type			Pneumatic
	8	Wheel	Front/rear		4月2日
Dimension	9	Max. lifting height		mm	3000
	10	Free lift		mm	205
	11	Fork size	LWT	mm	122017575
	12	Tilt range	Mast forward/backward	deg	6月12日
	13	Overall length(without fork)		mm	4255
	14	Total width		mm	2245
	15	Mast height (fork lowering)		mm	2548
	16	Overall height fork raised	With backrest	mm	4330
	17	Height to head guard		mm	2560
	18	Turning raduis(outside)		mm	3900
	19	Front face of fork to front axle		mm	710
	20	Min. right angle stacking aisle	pallet size :1100×1100 add clearence	mm	6250
Performance	21	Speed	Max Travelling full/no load	km/h	24/30
	22		Lifting full/no load	mm/s	390/410
	23		Lowering full/no load	mm/s	470/340
	24	Max.drawbar pull	full/no load	kg	5850/3200
	25	Gradeability at 1.6km/h	full load	%	22
		Max. Gradeability	full/no load	%	24/20
Weight	26	Truck weight		kg	12450
	27	Weight distribution	Full load front/rear	kg	20160/2290
	28	Weight distribution	No load front/rear	kg	5480/6970
Frame	29	Tires	Number	front/rear	4月2日
	30		Model	front axle	9.00×20-14PR
	31		Model	rear axle	9.00×20-14PR
	32	Wheelbase		mm	2800
	33	Tread	Front/rear	mm	1600/1700
	34	Ground clearence	At lowest point(mast)	mm	245
	34	Ground clearence	Frame	mm	320
	35	Brake	Service brake		power brake
	35	Brake	Parking brake		Mechanical-hand lever
Engine	36	Battery	Voltage/capacity	V/AH	2x12V-80AH
	37	Engine	Model		6BG1
			Rated power	kw/rpm	82.3/2000
			Rated torque	N-m/rpm	418/1500
			Number of cylinders		6
			Displacement	L	6.494
			Fuel tank capacity	L	140
	38	Transmission	shift stage(front/rear-type)		2-2 automatic
	39	Operating pressure	Hydraulic system pressure	kg/cm²	200

Diesel Forklift LTMG

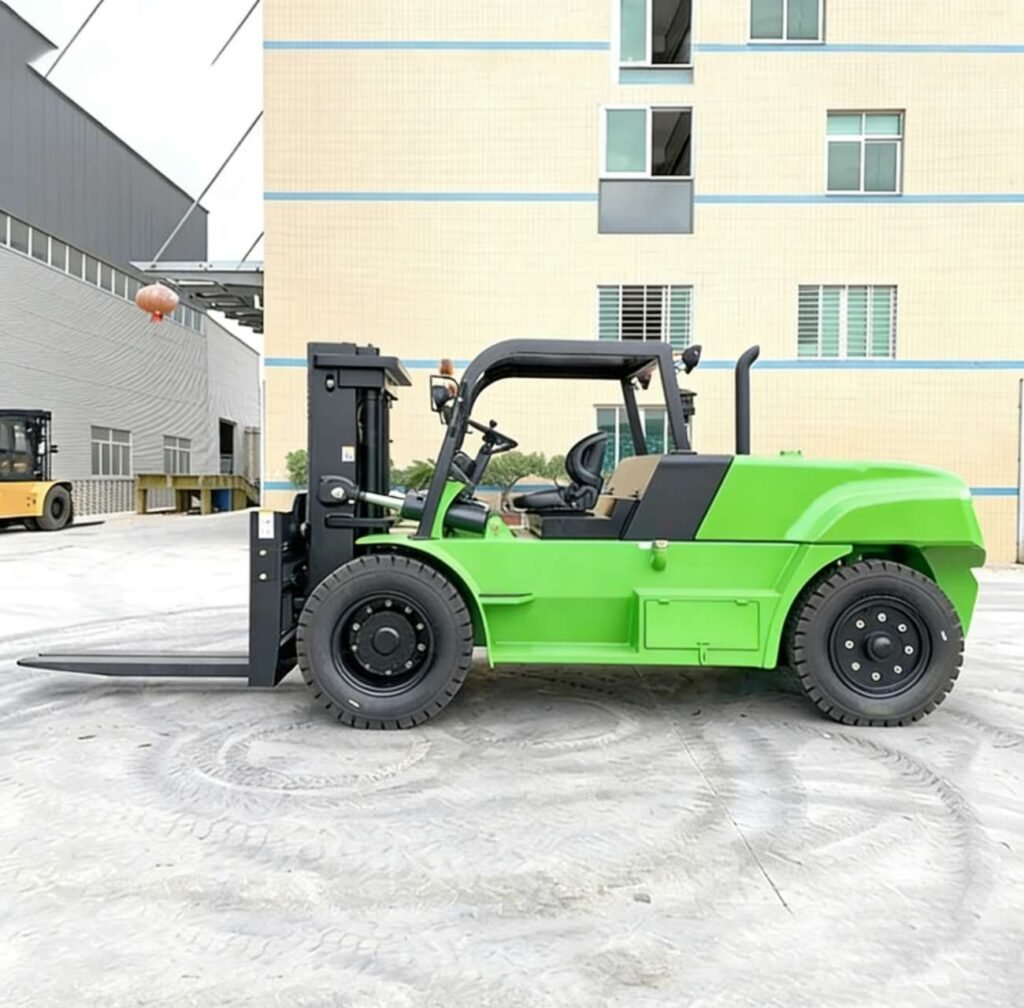

10 Ton Diesel Forklift

Model: FD100

Diesel forklift designed for heavy-duty material handling, featuring high load capacity, fuel efficiency, and stable performance for warehouse and construction applications. 品牌 LTMG

Brand

LTMG

Warranty

3 Years

ISO CE Certified

Worldwide Shipping

Strict QC
