| Chassis model | ZZ1167M4611W | |
| Dimension(L×W ×H)(unloaded)(mm) | 7150×2496×3170 | |
| Garbage bucket capacity | 5400x2300x1500 | |
| Approaching angle/Departure angle(°) | 19/26 | |
| Overhang(front/rear) (mm) | 1430/1170 | |
| Wheel base (mm) | 4600 | |
| Max speed(km/h) | 80 | |
| Curb weight(kg) | 8650 | |
| Loading Weight(kg) | 7350 | |
| Engine | Model | WD615.62,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection |
| (Steyr technology, made in China) | Fuel type | Diesel |
| Power, max(kw/rpm) | 196/2200 | |
| Emission | EURO 2 | |
| Fuel tanker capacity(L) | 350 | |
| Transmission | Model | HW13710,10 forward&2 reverse |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels | |
| Steering system | Model | ZF8098 |
| Front axle | Steering with double T-cross section beam | |
| Rear axle | Pressed axle housing, central double reduction with differential locks between axles and wheels | |
| Tyre | 12.00R22.5 | |
| Electrical system | Battery | 2X12V/180Ah |
| Alternator | 28V-1500kw | |
| Starter | 7.5Kw/24V | |
| Cab | HOWO76 Standard cab, with air container, all-steel forward control,55 hydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | |
| Garbage bucket details | Garbage bucket capacity is 12M3,wall 3mm, floor 4mm, top covered, manual open window in both side. | |
Hook Lift Truck
HOWO

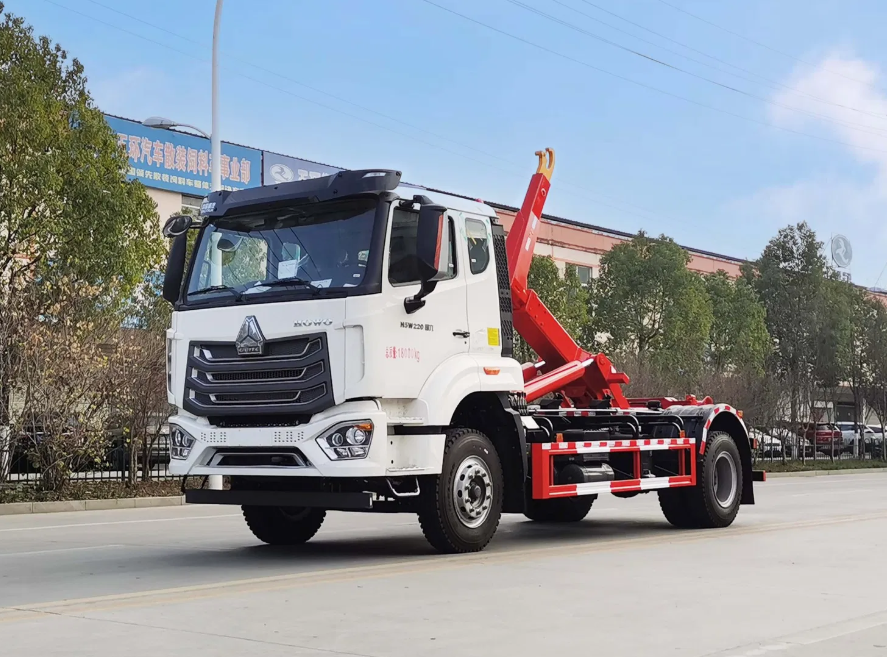

HOWO 10m3 Hook Lift Garbage Truck
Model: ZX9276PTRC96
The Hook Lift Truck is designed for fast and efficient container handling. It provides flexible operation, high payload capacity, and is widely used in waste collection, construction, and logistics.
Brand
HOWO
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
