| Chassis brand | SINOTRUCK HOWO | |
| Chassis model | ZZ1255N5243F | |
| Overall | 11900x2550x34600mm | |
| Main | dimension(L*W*H) | |
| specification | Material | Q235B Carbon Steel |
| Capacity | 20000Liter | |
| Cab | Haohan H77L new cab,Power glass main seat airbag damping; cab power lift; knob remote throttle; Smart Pass B; 300L fuel tank; frame left side forward arrangement | |
| Chassis | Drive model | 6X4 Left hand drive/RHD |
| GVW | 25000kg | |
| Curb weight | 14000kg | |
| Wheel Base | 4325+1350 mm | |
| Tyre size & number | 11.00R20,10 tires+1 spare tire | |
| Engine | Manufacturer | Sinotruk Howo |
| Model | WP10.340E22/WP10.380E22 | |
| Transmission | Euro 2 | |
| Engine Type | Diesel, 6 cylinder,water cooled,4 cycle | |
| Horse power | 340/380HP | |
| Displacement | 9.726L | |
| Max. output (kw) | 250/280KW | |
| Gear box | Model | HW19710+HW70 |
| Type | 10 forward gears& 2 reverse,synchronized | |
| Suspension | Front | Mechanical leaf spring-10pcs |
| Rear | Mechanical leaf spring-12pcs | |
| Axle | Front | 7T |
| Rear | 18T | |
| Fuel tank | 300L | |
| Tank body | Tank Volume(L) | 20000Liter |
| Tank shape | Cylindrical | |
| Tank Material | 8mm thick carbon steel | |
| Suction pipe | 30m | |
| View window | One pcs | |
| Add hose platform Each side | Checkered plate,body is made of carbon steel | |
| Vacuum pump | 2BE204 water recycle pump,with PTO | |
| Suction Depth(m) | More than 6 meter | |
| Tank Tipping method and angle | Middle lifting ,under tank body | |
| Rear door | Open and closed by hydraulic cylinders | |
| Manhole | 3,with top platform and ladder | |
Suction Sewage Truck

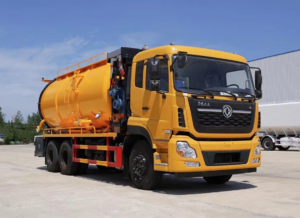

Dongfeng 6*4 High Condition 290HP 18cbm 18tons Vacuum Sewage Suction Tanker
