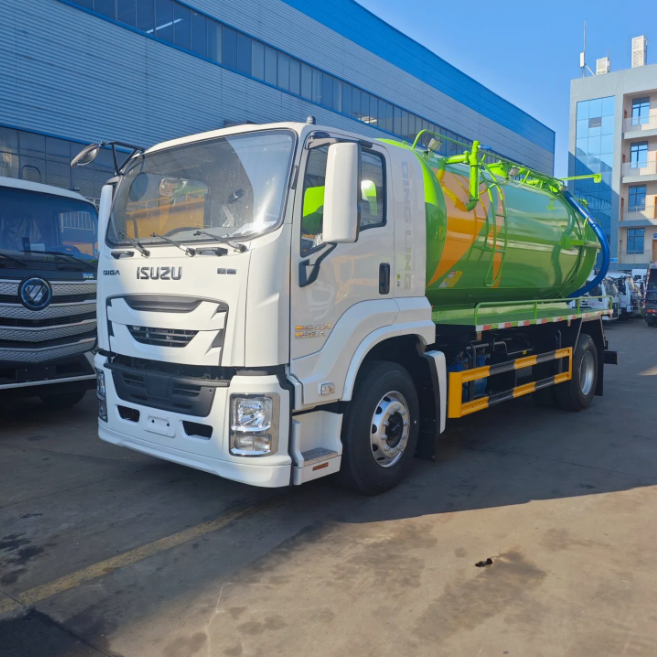

| External dimensions: | 8000x2550x3550 mm |
| Total mass: | 1 80 00kg |
| Rated load capacity: | 9400kg |
| Curb weight: | 8390kg |
| Chassis model: | QL1180JQFRY |
| Type: | 4 × 2 , flat-head diesel truck |
| Engine model: | 4HK1-TC60 |
| Maximum engine power : | 150kW |
| Exhaust emissions: | National VI |
| Maximum speed: | 89 km/h |
| Wheelbase: | 4500 mm |
| Equipped with an MLD six-speed transmission, air conditioning (heating and cooling), power steering, central locking, power windows, multi-function steering wheel, multi-function LCD instrument panel, ABS, and air brakes. The front axle has a capacity of 6.3 tons, and the rear axle has a capacity of 13 tons. Standard equipment for this class of vehicle is 295/80R22.5 18PR. | |
| Wastewater tank volume: | 12m 3 |
| sewage tank cross-sectional shape | round |
| Tank thickness | 6mm |
| Vacuum pump model: | SK-15 |
| Vacuum pump flow rate: | 15 m³/ min |
| Ultimate pressure | 6700Pa |
| power | 30KW |
| rotational speed | 9 80 r/min |
| Inlet/ outlet valve diameter | 100MM / 150MM |
| Tank lifting method | Front-mounted hydraulic cylinder lifting |
| Rear door opening method | Hydraulic opening with locking device |
| Clear water valve | 1 00 MM |
