| External dimensions: | 7650x2550x3450 mm |
| Total mass: | 18000kg |
| Rated load capacity: | 9400kg |
| Curb weight: | 8390kg |
| Chassis model: | QL1180JQFRY |
| Type: | 4 × 2 , flat-head diesel truck |
| Engine model: | 4HK1-TC60 |
| Maximum engine power : | 150kW |
| Exhaust emissions: | National VI |
| Maximum speed: | 89 km/h |
| Wheelbase: | 4500mm |
| Equipped with an Japan MLD six-speed transmission, air conditioning (heating and cooling), power steering, central locking, power windows, multi-function steering wheel, multi-function LCD instrument panel, ABS, and air brakes. The front axle has a capacity of 6.3 tons, and the rear axle has a capacity of 13 tons. Standard equipment for this class of vehicle is 295/80R22.5 18PR . | |
| Wastewater tank volume: | 10m 3 |
| sewage tank cross-sectional shape | round |
| Tank thickness | 6mm |
| Vacuum pump model: | SK-15 |
| Vacuum pump flow rate: | 15 m³/ min |
| Ultimate pressure | 6700Pa |
| power | 30KW |
| rotational speed | 9 80 r/min |
| Inlet/ outlet valve diameter | 100MM / 150MM |
| Tank lifting method | Front-mounted hydraulic cylinder lifting |
| Rear door opening method | Hydraulic opening with locking device |
| Clear water valve | 1 00 MM |
Suction Sewage Truck
ISUZU

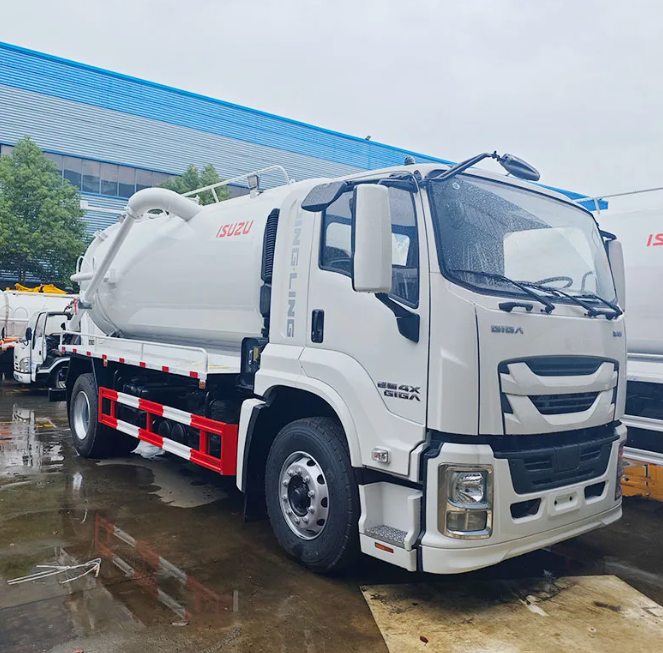

ISUZU Vacuum Sewage Suction Truck
Model: ZUK256LMKN716
Our suction sewage trucks are designed for efficient sewage collection, transportation, and disposal. Equipped with powerful vacuum pumps and durable tanks, they are ideal for municipal sanitation, industrial cleaning, septic tank maintenance, and wastewater management.
Brand
ISUZU
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
