| Model | JBC30 | JBS40 |
| Pump Max. thero. concrete output | 15-30m3/h | 15-40m3/h |
| Charging (hopper )capacity of mixer | 0.56m3 | 0.8m3 |
| Discharging capacity of mixer | 0.35m3 | 0.5m3 |
| Max.concrete pumping pressure | 10Mpa | 10Mpa |
| Distribution valve type | S valve | S valve |
| Concrete cylinder diameter stroke | 140×1100mm | 180×1000mm |
| Hopper capacity | 400L | 600L |
| Outlet diameter | 100mm | 125mm |
| Engine power | 66kw | 82kw |
| Rotate speed | 2300r/min | 2300r/min |
| Circuit type | Open circuit | Open circuit |
| Pumping system pressure | 28Mpa | 31.5Mpa |
| Mixing system pressure | 6-8Mpa | 6-8Mpa |
| Dimension | 5500x2300x3150mm | 6000x2300x3150mm |
| Weight | 5500kg | 6000kg |
Concrete Equipment
HARMAC

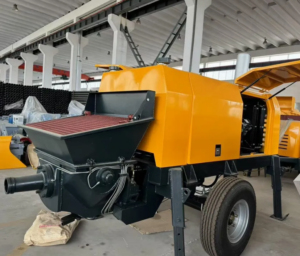

JBC30 Concrete Pump
Model: JBC30
Concrete Pump is a construction machine used to transport and place liquid concrete through pipelines to hard-to-reach areas efficiently. It is widely used in building, bridge, and infrastructure construction projects.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
