| Driving Type | 6*4 left hand drive | |
| Max Speed (km/h) | 80 | |
| Overall dimension(mm) | 9650*2500*3450 | |
| GVW( kg) | 25000 | |
| Wheelbase(mm) | 4325+1350 | |
| F/R overhang (mm) | 1500/1945, 1920 | |
| Approach/Departure Angel | 16/23 | |
| Tire | 12.00R22.5 | |
| Engine | Model | WD615.69 |
| Fuel Type | Diesel fuel | |
| Type | Water-cooled four-stroke,, direct injection, turbocharged | |
| Exhaust(ml) | 9726 | |
| Max output power/rotate speed (hp /rpm ) | 336 | |
| Braking system | Service Brake | Air over hydraulic dual circuit system |
| Park Brake | Mechanical, internal expanding acting on transfer output shaft | |
| Eletric system | 24v | |
| Upper-Body specification | ||
| Tank Volume (m3) | 16 | |
| Asphalt pump discharge(L/min) | 950 | |
| distribution width measurement(mm) | 4500 | |
| Distribution height from ground level(mm) | 200~450 | |
| Distribution quantitative(L/m2) | 0.25-3.5 | |
| Burner | 40G20 | |
| Asphalt pump | QGB950 | |
| Asphalt pump hydraulic drive motor | 05-130-bd31 | |
| Hydraulic pump | CBQ550-L | |
| Control method | Manually controlled two by one | |
| Heating Model | Thermal fuel Automatic heating | |
| Conducting oil pump | 40-25-160 | |
Asphalt Distributor Truck
HOWO

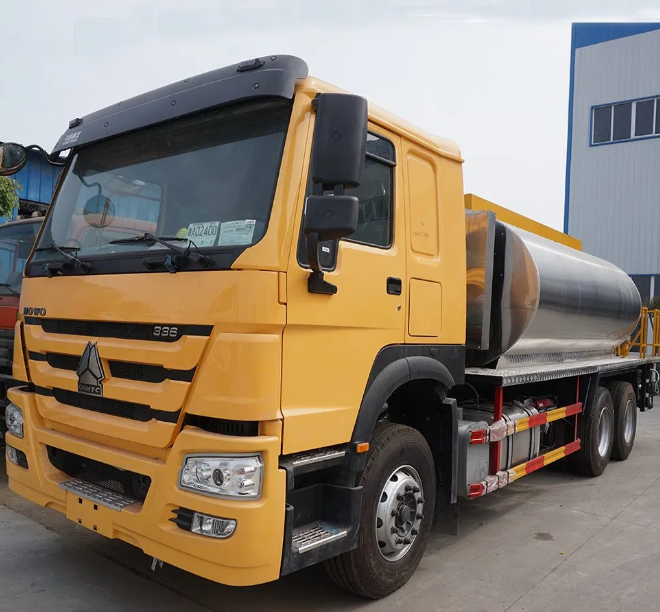

Manufacturer Heavy Duty 16000L Road Maintenance Truck Asphalt Distributor Truck
Model: ZZ3389M6839B
The Asphalt Distributor Truck is engineered for professional asphalt spraying applications. Equipped with an intelligent control system and reliable heating technology, it provides uniform spraying performance for highways, urban roads, airport runways, and pavement maintenance.
Brand
HOWO
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
