| Overall Dimension | Length×Width×Heights ( mm ): 5100×2600×2450 |
| Weight (kg) | 3000 |
| Feeding Capacity( kg/s ) | 4 |
| Harvesting Capacity(hm²/h): | 0.4-0.75 |
| Engine | Engine Model: 498BT/BZT/L; 4C6-88M22 |
| Rated Power ( kw/hp ): 65/88, 55/75 (Alternative) | |
| Type: Water-Cooled, 4-Cylinder, DI-Injection, Vertical Diesel. Turbocharged Engine. | |
| Driving System | Crawlers(mm): 90×51×450, 90×51×500 |
| Minimum Ground Clearance (mm): 280 | |
| Type of Gearbox: Hydraulic type + HST(3F, 3R) | |
| Cutting header | Pickup Reel: Type:Tooth ( off-centre ); Diameter( mm ): 900; Nos: 5 |
| Cutting Bar Length ( mm ): 2228 | |
| Type of Cutting Bar Auger: Screw Conveying. | |
| Rape Seed Extension: Optional | |
| Threshing & Separating | Threshing System: Spiked Tooth Axial Flow |
| & Cleaning System | Threshing Cylinder Size Diameter × Length ( mm ): 620×1700 |
| Vibrating Sieve: Adjustable sieve or Round hole sieve | |
| Fan: Type: Swirl; Diameter( mm ): 405; Nos: 4 | |
| Thresher Top Cover: Adjustable | |
| Grain Storing | Option 1: Big Grain Tank with Unloading Auger, Capacity ( L ): 1600 |
| Option 2: Small Tank Manual Operation. |
Agricultrual Equipment
HARMAC

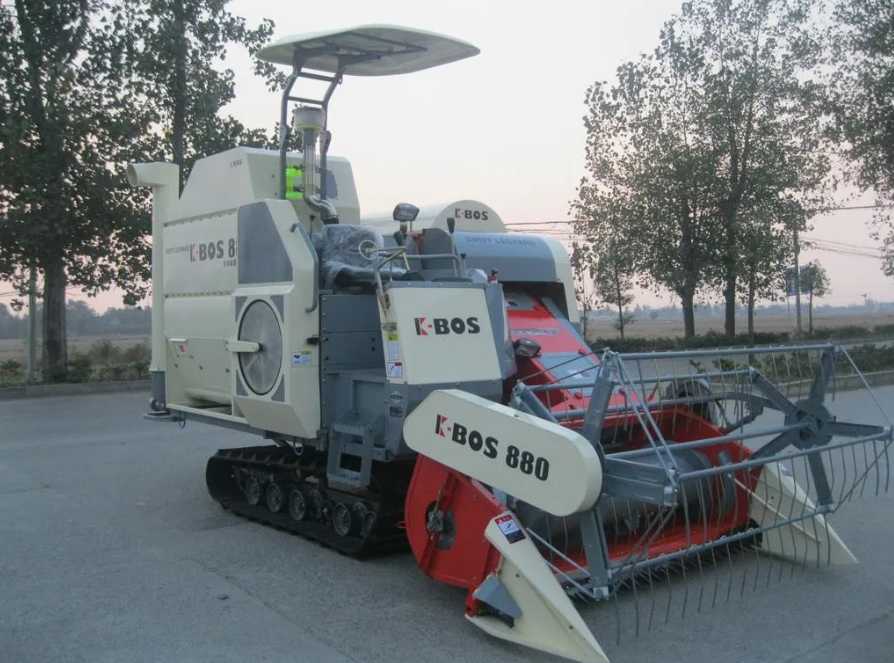

Rice Harvester Machine
Model: BOS880
A harvester is a machine used in agriculture to automate the process of harvesting crops. It is designed to efficiently collect mature crops from the fields, reducing the need for manual labor and increasing productivity.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
