| Cab | SHACMN L3000 Flat-top single row cab, with power steering. Electronic flameout, A/C | ||
| Driving Type | 4×2 Left hand driving | ||
| Max Speed (km/h) | 90 | ||
| Overall dimension(mm) | 8550×2500×3455 | ||
| GVW( kg) | 19000 | ||
| Mass in working order ( kg) | 8575 | ||
| Wheelbase(mm) | 4600 | ||
| F/R track base (mm) | 2022/1830 | ||
| F/R overhang (mm) | 1500/2380 | ||
| Approach/Departure Angel | 16/14 | ||
| Tire | 10.00R20 (10+1) | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 8-speed | ||
| Bridge | Front axle | 4.8T | |
| Rear axle | 10T | ||
| Enging | Model | WD6.210E32 | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled six-stroke,, direct injection, turbocharged | ||
| Exhaust(ml) | 6700 | ||
| Max output power/rotate speed (hp /rpm ) | 210/2200 | ||
| Max torque/rotate speed(N.m/rpm) | 1050/1100~1600 | ||
| Braking system | Service Brake | Compressed air brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
| Upper-Body specification | |||
| Volume of tank | 10000l | ||
| Color | Painted in the corporation’s colours with logo on both front doors as specified by the client | ||
| Material of tanker | 5mm Carbon stell (Q235) | ||
| Special function | Suction height | ≥9(m) | |
| Suction time | 250(S) | ||
| Maximum Inclination Angle | ≥45° | ||
| maximum vacuum | ≥11 MPa | ||
| Lifting time | ≤45 S | ||
| the Cover opening Angle | ≥75° | ||
| The cover opening time | ≤25 S | ||
| Suction pipe | 3m length and 100 mm in diameter | ||
| Hose Racks | Fitted on both sides of tank, to accommodate a minimum of seven hoses each | ||
| Fittings | Four-way change valve fitted to pump | ||
| Drain separator | |||
| vacuum pump | |||
| Fully opening rear door | |||
| Sight glasses at top and bottom of tank | |||
| Ladder: For access to top of tank complete on top of tank | |||
| vacuum pump | pump type | SK-12 | |
| motor power (kW) | 11 | ||
| weight (Kg) | 460 | ||
| pump speed (r.p.m) | 1440 | ||
| suction pressure (MPa) | 5.4 | ||
| diameter (mm) | 80 | ||
| Brief introduction of function | It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system. | ||
Septic Truck
SHACMAN

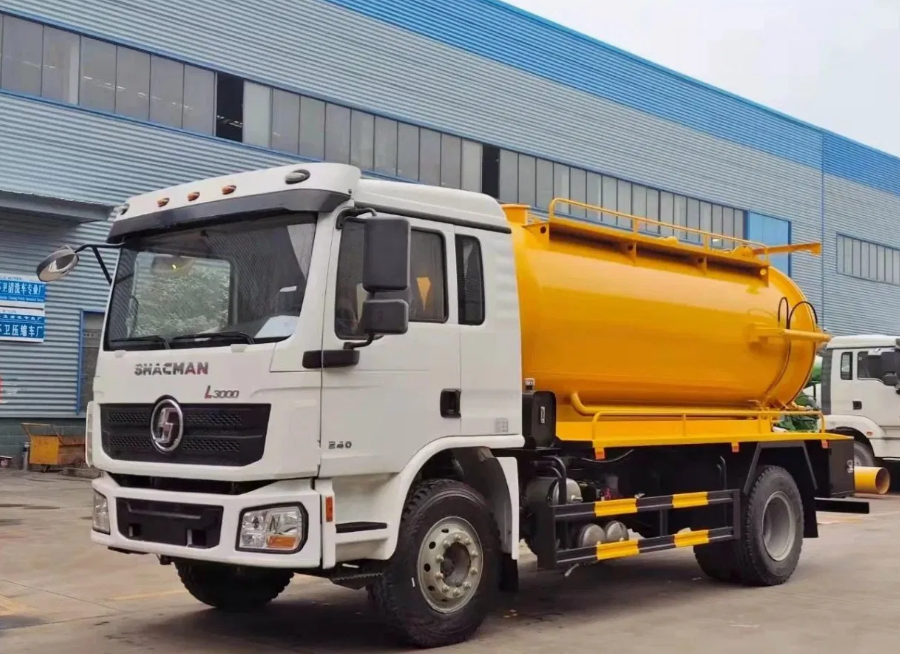

Shacman 4×2 Septic Truck Vacuum Suction and Fecal Suction Truck
Model: L3000
HARMAC supplies high-quality septic trucks for efficient sewage collection, transportation, and disposal. Featuring powerful vacuum pumps, corrosion-resistant tanks, and reliable chassis from ISUZU, FAW, Dongfeng, SINOTRUK, and more. OEM and customized solutions are available for global markets.
Brand
SHACMAN
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
