| Standard Version(350HP) | Remarks | ||
| Lightweight Elite Version(300HP) | |||
| Drive Type | 8×4 (4 Axles, Rear 2 Driven) | 8×4 (4 Axles, Rear 2 Driven) | Rigid dump truck SHACMAN |
| Wheelbase | 1950+2725+1400 mm | 1800+3575+1400 mm | Customizable based on chassis |
| Engine | Weichai WP7H300E68 | Weichai WP8.350E61 | Euro VI emission standard |
| 6.8L, 300HP, 1250N·m | 7.8L, 350HP, 1400N·m | ||
| Transmission | Fast S10MOQ | Fast 10JSD180 | Aluminum alloy housing optional |
| 10-speed manual, 2 reverse | 10-speed manual, 2 reverse | ||
| Front Axle | 4.8T Drum Brake Axle SHACMAN | 5.5T Drum Brake Axle | Heavy-duty design for construction |
| Rear Axle | 11.5T Single-stage Axle | 11.5T Single-stage Axle | Maintenance-free optional |
| Ratio: 5.286 SHACMAN | Ratio: 4.875 | ||
| Tire Specification | 11R22.5 Tubeless Tire | 10.00R20 Radial Tire SHACMAN | Customizable for different terrains |
| Cargo Box Size | 6000x2300x1500 mm | 6200x2350x1500 mm | High-strength steel, 8mm bottom/6mm side |
| (~20.7CMB) | (~21.9CMB) | ||
| Hydraulic System | Front-lifting HVYA | Front-lifting HVYB | Lifting time: ~18 seconds |
| Double-acting cylinder | Double-acting cylinder | ||
| Curb Weight | ~11.8 tons | ~12.2 tons | Lightweight design available |
| Rated Payload | ~18.2 tons | ~17.8 tons | Based on 31 tons total mass |
| GVW (Gross Vehicle Weight) | 31 tons | 31 tons | Standard for 8×4 dump trucks |
| Overall Dimensions | 8800x2500x3400 mm | 9000x2550x3450 mm | Including cargo box |
| Fuel Tank Capacity | 400L Aluminum Alloy | 400L/600L Optional | Suitable for long-distance operation |
| Cab Type | Medium-length Flat Roof | Medium-length Flat Roof | With air conditioner and power windows SHACMAN |
| Single Cabin SHACMAN | Double Cabin Optional | ||
| Emission Standard | Euro VI | Euro VI | Euro II-IV optional for export |
Dump Truck
SHACMAN

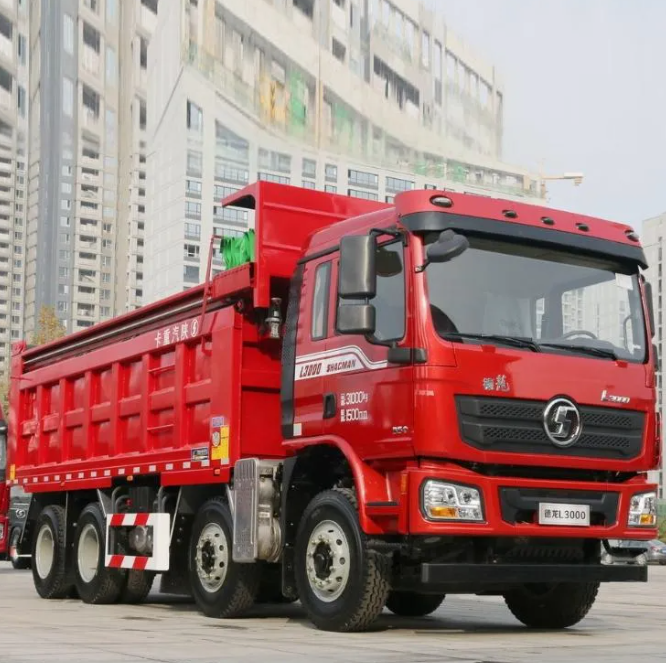

SHACMAN 8X4 Dump Truck
Model: L3000
Dump Truck is a heavy-duty vehicle used to transport and unload bulk materials such as sand, gravel, soil, and ore. It is equipped with a hydraulic system that lifts the truck bed to discharge materials quickly and efficiently. Dump trucks are widely used in mining, construction, and road projects due to their high load capacity and reliable performance.
Brand
SHACMAN
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
