| Engine Type | 330HP-EURO 4 | Displacement | 11596 ml |
| Dimension | optional | Discharge Standard | EURO 4 |
| Total Mass | 30000 kg | Spring Films | 10-13/14-18/12-14 |
| Curb Weight | 17000 kg | Loading Capacity | 6000-20000 kg |
| Axle Load | 16000 kg | Wheel Base | optional |
| Axle Number | 2 Axles | Maximum Speed | 90 km/h |
| Gearbox | Fast 9/10 | Front and Rear Axle | F-9t / R-16t*2 |
| Tire Number | 4/6/10/12(Add a spare tire) | Tyre Size | 12.00R20 |
| Front Track | 1986/1940 mm | Rear Track | 1860/1860 mm |
| Parameters of Mixing Drum | |||
| Material | Alloy steel / Mn-steel-16 / Baosteel-520 | ||
| Reduction Box | Germany-ZF / Bonfiglioli / PMP | Hydraulic System | Rexroth / Eaton / PMP |
| Water System | 300L(Pneumatic water supply) | Cooling System | OBCC |
| Feeding Speed | ≥3 m³/min | Discharge Speed | ≥2 m³/min |
| Discharge Residual Rate | ≤0.5% | Operating Mode | Both sides and the cab |
| Scope of Discharge | Adjustable | Safety Device | Add the leakage receiving device |
Concrete Mixer Truck
SHACMAN

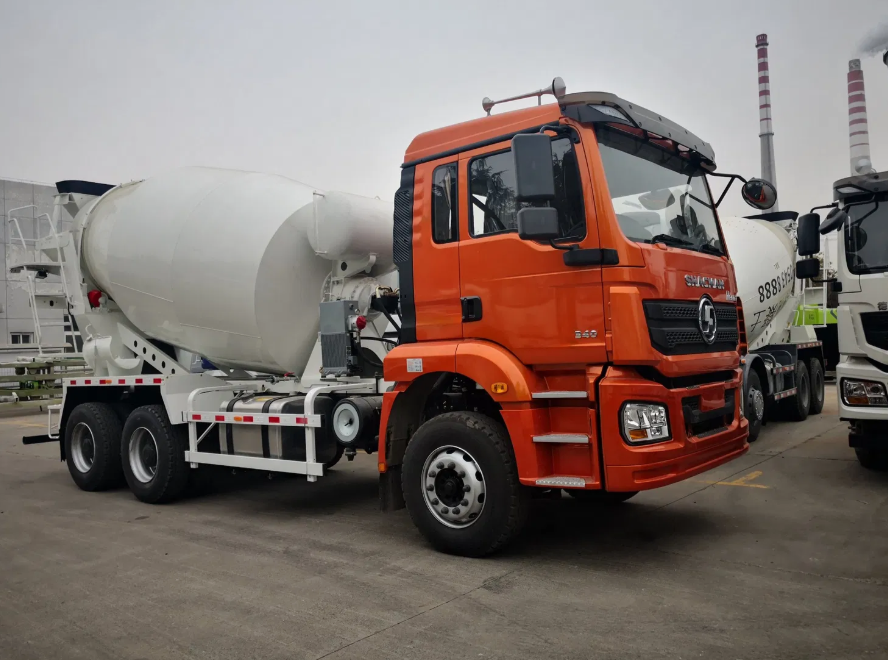

SHACMAN Concrete Mixer Truck
Model: JSXT3865
A concrete mixer truck is a vehicle used to transport and mix concrete. It has a rotating drum that keeps the concrete in liquid form during transit and delivers it ready for construction use. It is widely used in building, road, and infrastructure projects.
