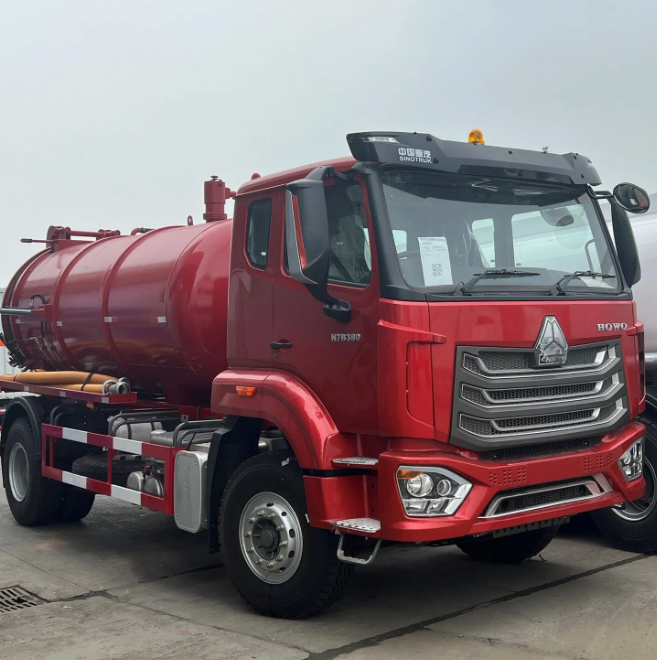

Sinotruk Hohan 4X2 6 Wheel High Pression Sewer Flushing Vehicle Sewage Suction Truck

Model	ZZ1167M4611W Driving Type 4×2
Engine	Engine model: WD615.87, Euro 2 emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water
	cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system
	Maximum output: 290PS (247kW) at 2200 rpm
	Maximum torque: 1350Nm at 1100-1600rpm
	Bore: 126mm Stroke: 130mm
	Displacement: 9.726L
	Compression ratio: 17.5:1
	Specific fuel consumption: ≤198g/kWh
	Engine oil filling quantity: 23L
	Air compressors: WABCO Twin cylinders air compressors;
	Cooling system filling quantity(long-term filling): 40L
Clutch	SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
Transmission	Transmission, model HW19710, 10 forward and 2 reverse
	Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00; 13.91/3.18(R)
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle	New HF9 series, with drum brake system
	Steering with double T-cross section beam
Rear Axle	HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
	Ratio:4.42
Chassis	Frame: High-strength U-profile frame, all cold riveted cross members and reinforced subframe
	Front suspension: semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
	Rear suspension: semi-elliptic leaf springs and bogie springs
	Spare wheel carrier: with one spare wheel
Steering	ZF8118, hydraulic steering with power assistance
	Ratio: 22.2-26.2:1
Braking System	Front and rear drum brake, four-circuit protection valve
	Service brake: dual circuit compressed air brake
	Parking Brake: spring energy, compressed air operating on rear wheels
	Auxiliary brake: engine exhaust brake
Wheel & Types	Rims: 8.5-20,10 hole-steel
	Types: 295/80R22.5, 12.00R22.5, 315/80R22.5, 12.00R20
Driver’s cab	Long cab, all steel forward control, 55° hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds,VDO
	electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat and rigid adjustable
	co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, one sleeper,sun visor, safety belt, air
	conditioner, adjustable steering wheel.
Electrical System	Operating voltage:24V, negative grounded
	Starter: 24V, 7.5KW
	Alternator: 3-phrase, 28V, 1540W
	Batteries: 2×12V, 165Ah
	Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp
Dimensions in mm	Wheel base (mm)	4600+1500
	Front wheel track (mm)	2022/2041
	Rear wheel track (mm)	1830
	Front overhang (mm)	1500
	Rear overhang (mm)	1859
	Approach angle(°)	19
	Departure angle(°)	24
	Overall Dimension (mm)	8030×2540×3300
Weight in kg	Permissible loading capacity (kg)	16000
	Dead weight (kg)	10500
	Gross vehicle weight (kg)	16000
	Gross combination weight (kg)	16000
	Front axle loading capacity (kg)	9000
	Rear axle loading capacity (kg)	16000
Performance	Maximum driving speed(km/h)	78(reference data)
	Maximum gradeability (%)	36
	Minimum ground clearance(mm)	314
	Minimum turning radius (m)	15
	Fuel consumption(L/100km)	40(reference data)
sewage suction tank confirmition	capacity: 10cbm
	tank material: Q235
	tank thikness: tanker 6mm, seal head 6mm
	Italy vaccum pump:MEC11000
	Italy vaccum valve:PN100

Suction Sewage Truck HOWO

Sinotruk Hohan 4X2 6 Wheel High Pression Sewer Flushing Vehicle Sewage Suction Truck

Model: ZX3607OFADJ692

Our suction sewage trucks are designed for efficient sewage collection, transportation, and disposal. Equipped with powerful vacuum pumps and durable tanks, they are ideal for municipal sanitation, industrial cleaning, septic tank maintenance, and wastewater management.

Brand

HOWO

Warranty

3 Years

ISO CE Certified

Worldwide Shipping

Strict QC
