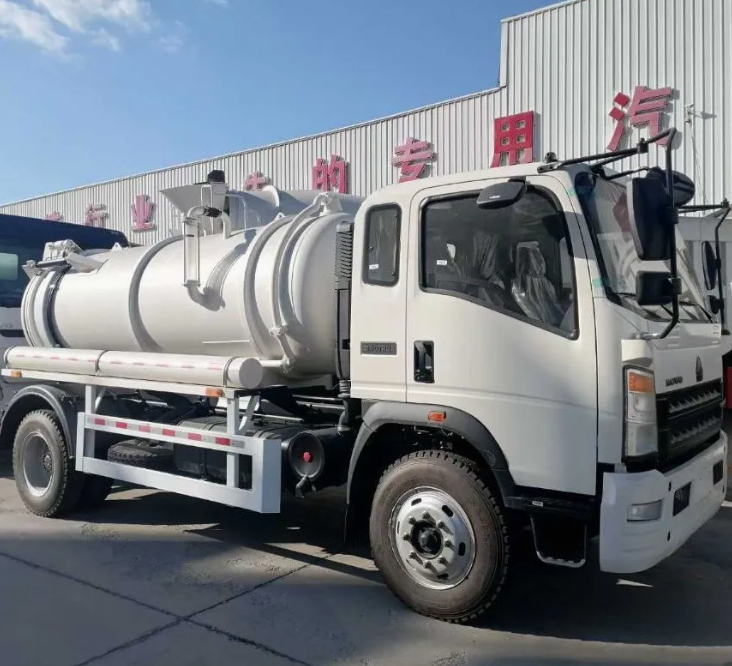

| Product Name | Joint Drain Cleaning Truck |
| Vehicle Model | CL5141GQW6CC |
| Gross Vehicle Weight | 14,060 (kg) |
| Rated Payload | 5,865 (kg) |
| Curb Weight | 8,000 (kg) |
| Overall Dimensions (Length x Width x Height) | 7,350 × 2,380 × 3,100, 3,200 (mm) |
| Wheelbase | 3800 (mm) |
| Sewage Tank Capacity (approx.) | 8 cubic meters |
| Cleaning Tank Capacity (approx.) | 3.5 cubic meters |
| Tank Material | Q235 carbon steel |
| Sewage Tank Thickness | 6 (mm) |
| Fresh Water Tank Thickness | 6 (mm) |
| Discharge Port | 150 aluminum alloy ball valve |
| Suction Port | 100 aluminum alloy ball valve |
| Tank Self-Unloading | Lifting and unloading |
| Suction Pump | SK-12 water circulation pump |
| Water Circulation Pump Tank | Carbon steel material |
| Vertical Suction Depth (approx.) | 6-8 meters |
| Horizontal Suction Distance | 50 meters |
| Chassis parameters | |
| Chassis | Dongfeng DoriKa |
| Chassis model | EQ1145SJ8CDC |
| Cab color | Engineering Yellow |
| Drive type | 4*2 |
| Engine | Yuchai 165 horsepower/Yunnei 180 horsepower/Cummins 195 horsepower |
| Emission standard | National VI |
| Tires | 8.25 steel wire tires |
| Other | Standard configuration according to chassis specifications |
