| Model | 4LZ-3.0D | |
| Brand Name | Silon | |
| Type | Self-Propelled Full Feeding | |
| Fit harvesting crop | Rice, Wheat, Rapeseed | |
| Working Efficiency | 0.2~0.47 hm2/h | |
| Overall Dimensions (L x W x H) | 4750×2350×2360 mm | |
| Weight | 2620 kg | |
| Engine | Turbo-charged Diesel Engine | |
| Model | A498BZT / A498BZT88/24 | |
| Type | In-line, water cool, 4-stroke,Direct injection | |
| Rated Power | 75HP (55KW) / 88HP (65KW) / 2400 rpm | |
| Fuel tank | 80L | |
| Fuel consumption per hectare | ≤30 Kg/Ha. | |
| Chassis | ||
| Rubber Track | 400/450/500*90*48mm | |
| Transmission | HST F:3 / R:3 | |
| Ground Pressure | ≤18 Kpa | |
| Min. Ground Clearance | 310 mm | |
| Header | ||
| Cutting Width | 2000 mm | |
| Feeding capacity | 3Kg/S | |
| Type of Lifting | Hydraulic | |
| Lifting of Reel | Hydraulic | |
| Steering | Hydraulic | |
| Conveyor | Chain rack tooth type | |
| Threshing Cylinder | Tangential Flow + Axial Flow, Dual Spike-tooth type | |
| Cleaning | Fan (front blowing + rear suction)+Sieving+re-thresher | |
| Discharging | 0.3CBM | Manual type & bag |
| 1.0CBM | Auto type with discharger auger | |
| Grain Tank | 1.0 CBM (500-550 kg) / 0.3CBM (150-200 Kg) | |
| Total Loss | ||
| Rice | ≤1.5% | |
| Wheat | ≤1.2% | |
| Breakage | ≤1.5% | |
| Impurity | ≤1.0% | |
Agricultrual Equipment
HARMAC

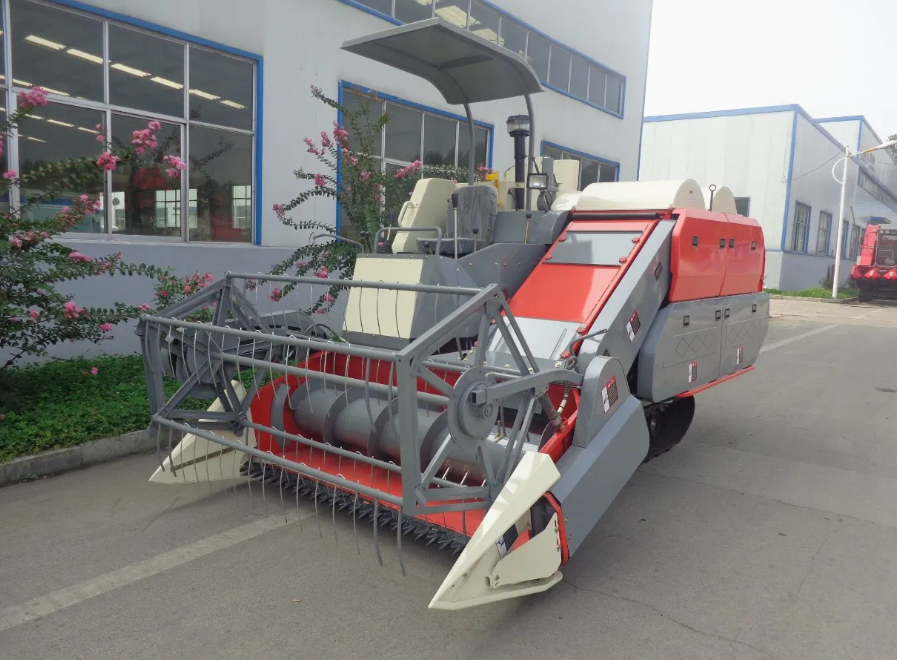

Wheat Harvester Machine
Model: 4LZ-3.0D
A harvester is a machine used in agriculture to automate the process of harvesting crops. It is designed to efficiently collect mature crops from the fields, reducing the need for manual labor and increasing productivity.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
