Model			XZJ5120GXWD5
Dimensions (length × width × height) mm			7110×2430×3050
Tank dimensions (mm) length / diameter			4300/1500
Chassis model			DFL1120B21
Wheelbase (mm)			3800
Maximum suction and degree (m)			<=8
Effective capacity (m3)			6.5
Front overhang / rear overhang (mm)			1440/1870
Maximum speed (Km/h)			98
Maximum total mass (Kg)			12495
Curb weight (Kg)			7295
Suction diameter (mm)			100
	type		Single stage rotary vane oil seal pump
	Theoretical pumping speed (m3/h)		244
Vacuum pump	Shaft power		800r/min
	Absolute working pressure	Absolute value	-0.93
		percentage	93%

Suction Sewage Truck XCMG

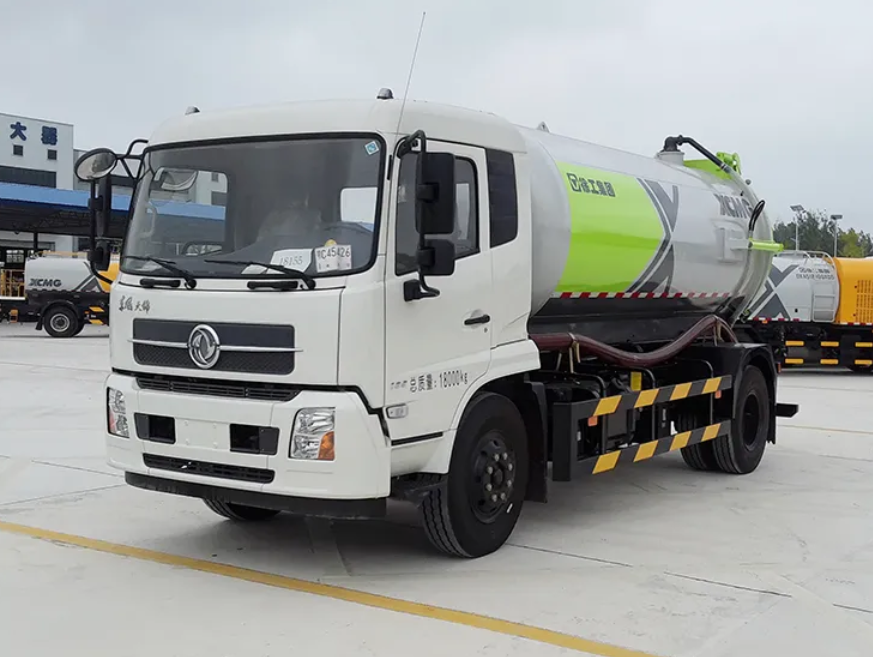

XCMG 12 Ton Sewage Suction Tanker Truck

Model: XZJ5120GXWD5

Our suction sewage trucks are designed for efficient sewage collection, transportation, and disposal. Equipped with powerful vacuum pumps and durable tanks, they are ideal for municipal sanitation, industrial cleaning, septic tank maintenance, and wastewater management.

Brand

XCMG

Warranty

3 Years

ISO CE Certified

Worldwide Shipping
