Boundary Dimensions 🙁 Length × width × height)	14920 × 2500 × 4000 mm
Full quality	50,700 kg
Maximum speed	≥ 85 km/h
Minimum turning diameter	≤ 26m
Entering the near corner	≥ 13 °
Leaving the corner	≥ 8 °
Maximum climbability	≥ 25%
Outrigger span	Longitudinal span	7000 mm
	Horizontal span	7000 mm
Maximum platform load	500 kg
Maximum working height	72 meters
Maximum working radius	25 meters
The lifting angle of the boom	For the Prosperity. 1, It is 1° to 86°
	The 2nd boom and boom have a span of -76° to 76°
	folding arm and 2nd arm 85° to 180°
Rotation range	360° full rotation
Propagation time of outriggers	≤ 40 seconds
The time to lift the boom to its rated height and rotate 90°	≤ 220s
Maximum slewing speed	0.2 ~ 1.0 rpm

Fire Truck XCMG

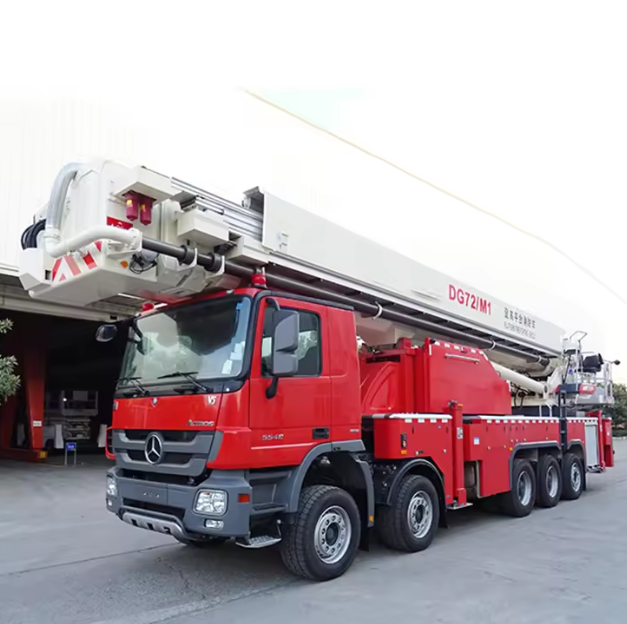

XCMG Brand 32m New Hydraulic Ladder Fire Truck

Model: DG72

Reliable Fire Fighting Vehicles for Municipal, Industrial, Airport, and Emergency Rescue Applications. Available in Water Tank, Foam, Rescue, and Custom Configurations.

Brand

XCMG

Warranty

3 Years

ISO CE Certified

Worldwide Shipping

Strict QC
