| Model | HT12 |
| Operate Weight | 1200kg |
| Digging bucket capacity | 0.025cbm |
| Bucket width | 380mm |
| Engine | Kubota D482 |
| Power | 10.2kw |
| Bore stroke | 2 cylinder, water cool |
| Climbing capability | 30° |
| MAIN DEMENSIONS | |
| Overall dimension( LxWxH) | 2775x930x2219mm |
| Total length of track | 1230mm |
| Platform ground clearance | 380 mm |
| Track width | 180 mm |
| OPERATING RANGE | |
| Max. Digging depth | 1750 mm |
| Max. Digging height | 2610 mm |
| Max. Dumping height | 1850 mm |
| Max. Digging radius on ground | 2600 mm |
| Min. Rotation radius | 1190 mm |
| Max. Upgrade height of bulldozer blade | 325 mm |
| Max. Digging depth of bulldozer blade | 175 mm |
Earthmoving Equipment
HARMAC

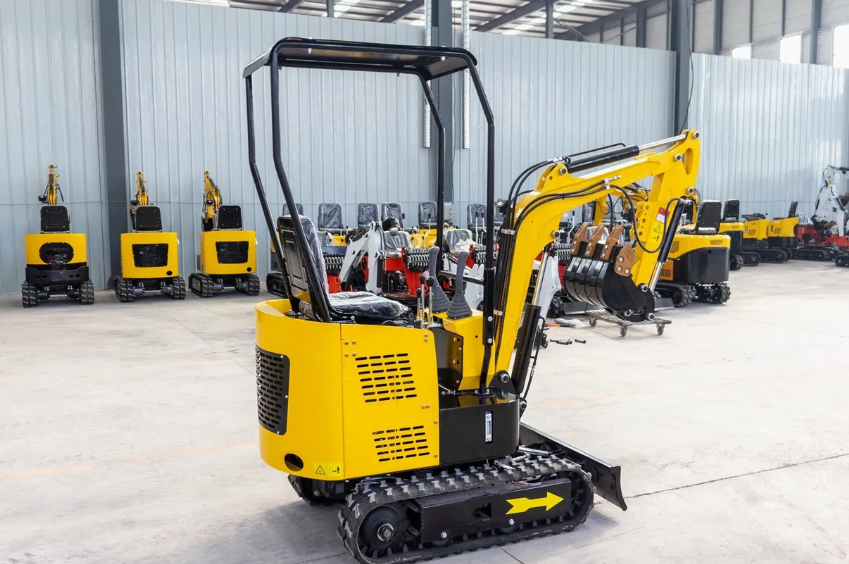

1.2 Ton Excavator
Model: HT12
n excavator is a versatile construction machine primarily used for digging, lifting, and moving materials like soil, rock, and debris. It consists of a base (tracked or wheeled), a hydraulic arm, and a bucket. Excavators are essential for construction, mining, and demolition work.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
