Model	FL20	FL25	FL30	FL35	FL40
Rated lifting weight ,kg	2000	2500	3000	3500	4000
Load center ,mm	500	500	500	500	500
Power	LPG &	LPG &	LPG &	LPG &	LPG &
Power	gasoline	gasoline	gasoline	gasoline	gasoline
Max. lifting speed (full load) ,mm/s	400	400	505/475	505/450	300
Max. travel speed (full load/unload) ,km/h	17/19	17/19	18/20	17/19	18/20
Grade-ability (full / no load) ,%	15/20	15/20	15/20	15/20	15/20
H1 lifting height ,mm	3000	3000	3000	3000	3000
Free lifting height ,mm	60	60	80	80	80
Min. turning radius ,mm	2450	2450	2530	2540	2720
Min. right angle channel ,mm	2050	2050	2110	2110	2320
Min. ground clearance ,mm	110	110	135	135	135
A Overall length (including forks) ,mm	3605	3605	3970	4000	4100
B Overall width ,mm	1160	1160	1230	1230	1230
H Overall height (mast retraction) ,mm	2095	2095	2110	2110	2110
H2 Overall height (full extension of mast) ,mm	4080	4080	4270	4270	4270
H3 overhead guard height ,mm	2095	2095	2110	2110	2110
A1 front overhang ,mm	451	451	465	465	470
A2 wheelbase ,mm	1640	1640	1775	1775	1900
B1 wheel treat front ,mm	970	970	1000	1000	1060
B2 wheel treat rear ,mm	970	970	970	970	970
Front tyre	7.00-12	7.00-12	28×9-15	28×9-15	250-15
Rear tyre	6.00-9	6.00-9	6.50-10	6.50-10	6.50-10
Weight ,kg	3320	3600	4250/4290	4660/4700	4900
B3 fork width,,mm	122	122	122	122	150
H4 fork thickness ,mm	40	40	45	45	45
fork bracket height ,mm	1000	1000	1225	1225	1225
A3 standard fork length ,mm	1070	1070	1220	1220	1220
Engine	Japan Nissan K21	Japan Nissan K21	Japan Nissan K21	Japan Nissan K25	Japan Nissan K25
Rated power kW	31.2	31.2	31.2	37.4	37.4
Transmission	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical

Forklift HARMAC

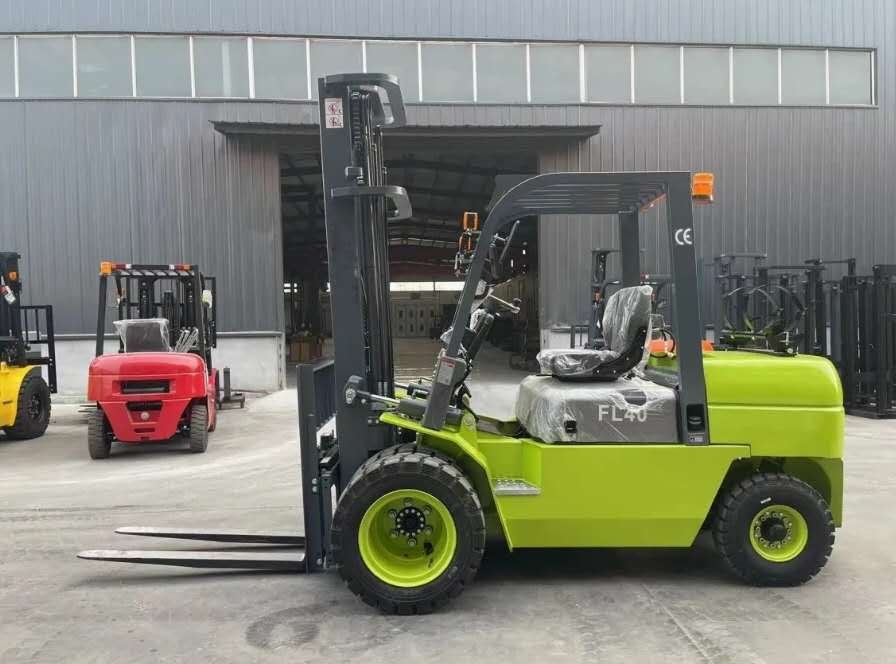

4 Ton LPG Forklift

Model: FG40L

An LPG forklift is an industrial lifting vehicle powered by liquefied petroleum gas (propane or butane). It combines the strong performance of internal combustion forklifts with cleaner emissions, making it suitable for both indoor and outdoor operations.

Brand

HARMAC

Warranty

3 Years

ISO CE Certified

Worldwide Shipping

Strict QC
