| Max Liftingmoment | 125Kn.m | |
| Max Lifting Capacity (kg/m) | 5000/2.5 | |
| 2700/3.65 | ||
| 1400/6.2 | ||
| 850/8.8 | ||
| Max Lifting Height | 10.7m | |
| Working Radius | 8.8m | |
| Boom Section | 3 stages | |
| Rotation Angle | 360°All Rotaion | |
| Working Pressure | 16Mpa | |
| Rated Oil Flow | 50L/min | |
| Oiltank Capacity | 120L | |
| Winchtype | Hydraulic | |
| Swingtype | Planetary gear reduction. | |
| Outrigger | adjustable, Hydraulic operating. | |
| Outrigger Span | 2215-5015mm | |
| Crane Weight | 2300 kg | |
| Installation Space | 950mm | |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device. | |
| Material | HG70 | |
| Truck for reference | ||
| Cabin | Driving type: 4×2, Left hand drive (Right hand drive type can be customized) | |
| Color is optional | ||
| Vehicle Main Dimensions | Overall size (L x W x H) | 8535,9000x2500x3650 mm |
| Wheel base | 5100 mm | |
| Cargo Body | 5600x2300x500 mm | |
| Weight in KGS | GVW | 15800 kg |
| Tare weight | 12380 kg | |
| Front axle loading capacity | 5000 kg | |
| Rear axles loading capacity | 10000 kg | |
| Engine | Type | Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Horse Power | 180HP (132kw) | |
| Max Torque | 650N.m | |
| Emission standard | Euro V | |
| Max Speed | 90 km/h | |
| Gearbox | manual gearbox with 8 forwards & 2 reverses, with PTO | |
| Tire | 10.00R20 tubeless tire, 7 pieces including one spare tire | |
Lifting Equipment
AUMAN

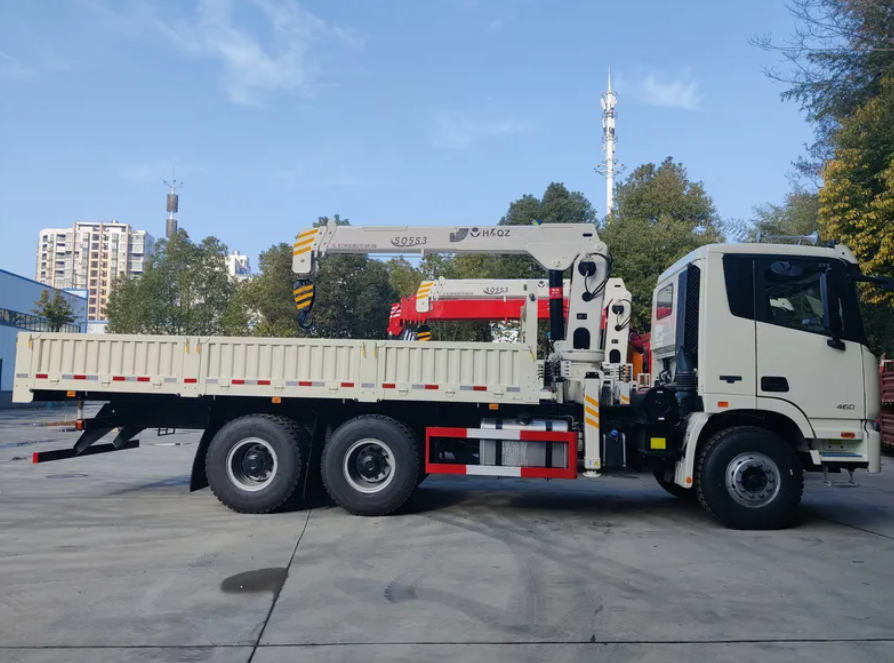

5 Ton Truck Mounted Crane
Model: KTC5L5D
A Truck Mounted Crane is a lifting machine installed on a truck chassis, combining transportation and lifting capabilities in one efficient unit. It is designed for loading, unloading, and transporting heavy materials while providing flexible lifting operations at different job sites.
Brand
AUMAN
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
