Item	MRT-SS6	MRT-SS8	MRT-SS10	MRT-SS12	MRT-SS14
Safe working load	320Kg	320Kg	320Kg	320Kg	230Kg
Safe working load of extension platform	113Kg	113Kg	113Kg	113Kg	113Kg
Maximum working height (H2)	8m	10m	12m	14m	16m
Maximum platform height (H1)	5.8m	7.8m	9.8m	11.8m	13.8m
Overall length	2470mm	2470mm	2470mm	2470mm	2855mm
Overall width	1150mm	1150mm	1150mm	1150mm	1320mm
Overall height (fence unfolded)	2220mm	2320mm	2430mm	2550mm	2580mm
Overall height (fence folded)(H)	1680mm	1780mm	1910mm	2030mm	2040mm
Working platform size	2270x1110mm	2270×1110mm	2270×1110mm	2270×1110mm	2640*1100mm
Platform extension size	900mm	900mm	900mm	900mm	900mm
Minimum ground clearance (folded state)	100mm	100mm	100mm	100mm	100mm
Minimum ground clearance (raised state)	19mm	19mm	19mm	19mm	19mm
Wheelbase	1850mm	1850mm	1850mm	1850mm	2200mm
Minimum Turning Radius (Inner Wheel)	0mm	0mm	0mm	0mm	0mm
Min. turning radius (outer wheel)	2200mm	2200mm	2200mm	2200mm	2200mm
Lifting motor	24V/3.3KW	24V/4.5KW	24V/4.5KW	24V/4.5KW	24V/4.5KW
Machine operating speed (furled state)	3.5Km/h	3.5Km/h	3.5Km/h	3.5Km/h	3.5Km/h
Machine operating speed (lifting state)	0.8Km/h	0.8Km/h	0.8Km/h	0.8Km/h	0.8Km/h
Rising/falling speed	5-6M/Min	5-6M/Min	5-6M/Min	5-6M/Min	5-6M/Min
Battery	4x6V/203	4x6V/203	4x6V/203	4x6V/203	4*12
Charger	24V/30A	24V/30A	24V/30A	24V/30A	24V/30A
Maximum climbing capacity	25%	25%	25%	25%	25%
Maximum permissible angle of operation	2 – 3°	2 – 3°	1.5 – 3°	1.5 – 3°	1.5 – 3°
Tires	Φ381×127	Φ381×127	Φ381×127	Φ381×127	Φ381×127
Weight	2000Kg	2350Kg	2600Kg	2760Kg	3370Kg

Lifting Equipment HARMAC

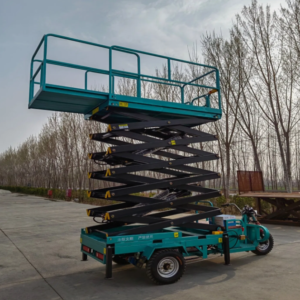

8 Meters Scissor Lift

Model: MRT-SS6

A Scissor lift is a vertical lifting platform designed to safely elevate workers, tools, and materials to various working heights. Its crisscross (“scissor”) support structure provides stable vertical movement, making it ideal for maintenance, installation, construction, and warehouse operations.

Brand

HARMAC

Warranty

3 Years

ISO CE Certified

Worldwide Shipping

Strict QC
