Model	/	CPCD350
Drive	/	Diesel
Rated Load	Q(kg)	35000
Load Center Distance	C(mm)	1200
Wheelbase	Y(mm)	4650
Front Overhanging	X(mm)	1235
Rear Overhanging	P(mm)	982
Service Weight	(kg)	47720
Full-loaded Axle Load,front/rear	(kg)	72900/8100
Unloaded Axle load,front/rear	(kg)	20700/25300
Tire Type	/	Pneumatic Tires
Tire Size,(front/rear)	/	16.00-25-36PR
Front Wheel Tread	b10(mm)	2469
Rear Wheel Tread	b11(mm)	2435
Mast Tilting Angle,front/rear	a/b(°)	6月10日
Mast Lowered Height	h1(mm)	4220
Free Lifting Height	h2(mm)	120
Standard Maximum Lifting Height	h3(mm)	4000
Rollover Protective Structure(ROPS)Cab Height	h6(mm)	3875
Overall Length	11(mm)	9310
Overall Width	b1(mm)	3450
Fork Size(length/width/thickness)	I/e/s(mm)	2440×300×120
Fork Carriage Width	b2(mm)	3000
Ground Clearance Under Mass at Full Load	m1(mm)	275
1000*1200 Pallet Aisle Width (transverse)	Ast(mm)	10348
800*1200 Pallet Aisle Width (longitudinal)	Ast(mm)	10348
Min Turning Radius	Wa(mm)	6480
Fork Outer Spread Adjustment Range(Max./Min.)	(mm)	2850/920
Traveling Speed,loaded/unloaded	(km/h)	22/24
Lifting Speed,loaded/unloaded	(mm/s)	245/310
Lowering Speed,loaded/unloaded	(mm/s)	300/300
Full-Load Traction Force	(kN)	242
Gradeability,loaded/unloaded	(%)	25
Driving Brake/Parking Brake	/	Hydrualic/Hydrualic
Rated Power/RPM	(kW/rpm)	194/2200
Torque/RPM	(N ·m/rpm)	1175/1350
Number of Cylinders	/	6
Bore×Stroke	(mm)	110×135
Emission	/	Stage III
Overall Length (forks excluded)	l2(mm)	6870
Maximum Height When Mast is Raised	h4(mm)	6190
Transmission Type	/	Semi-Automatic Transmission

Diesel Forklift HARMAC

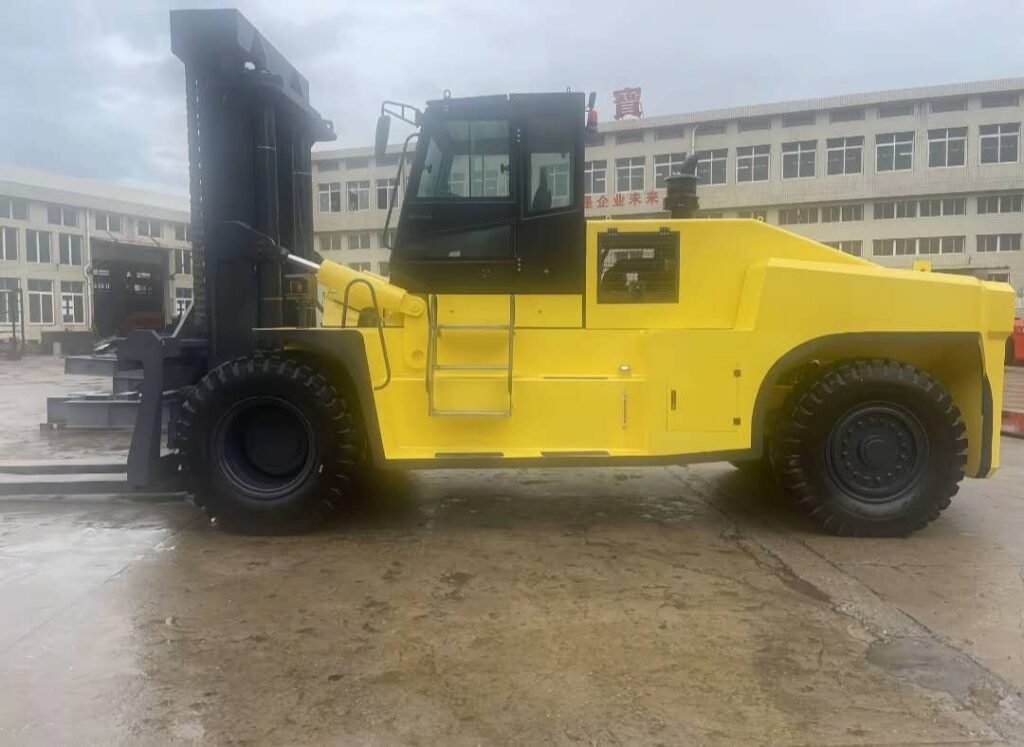

35 Ton Diesel Forklift

Model: CPCD350

Diesel forklift designed for heavy-duty material handling, featuring high load capacity, fuel efficiency, and stable performance for warehouse and construction applications.

Brand

HARMAC

Warranty

3 Years

ISO CE Certified

Worldwide Shipping

Strict QC
