| Model | LTR60 | |
| Rated Capacity | kg | 6000 |
| Mast width | mm | 180 |
| Max.Gradeability (No load/Full load) | % | <35° |
| Frame articulation | mm | Front250 Rear300 |
| Weight | kg | 6300 |
| Mast Tilt Angle(F/R) | Deg | 12° |
| Dimension | mm | 4000*2400*2600 |
| Tires | mm | 12R22.5 |
| Turning radius (outside tires) | mm | 4100 |
| Lift Height | mm | 3000 |
| Fork length (standard) | mm | 1220 |
| Ground Clearance(Bottom of mast) | mm | 330 |
| Mast Lowered Height | mm | 2330 |
| Engine | Yunnei4102 | |
| Rated output/r.p.m. | kw | 78/3200 |
| Rated torque/r.p.m. | N·m | 285/1200-2800 |
| No.of Cylinder | 4 | |
| No.of Cylinder | mm | 81×97 |
| Displacement | L | 1.99 |
| Drive Model | 4WD | |
| Gearbox | 280 |
Forklift
HARMAC

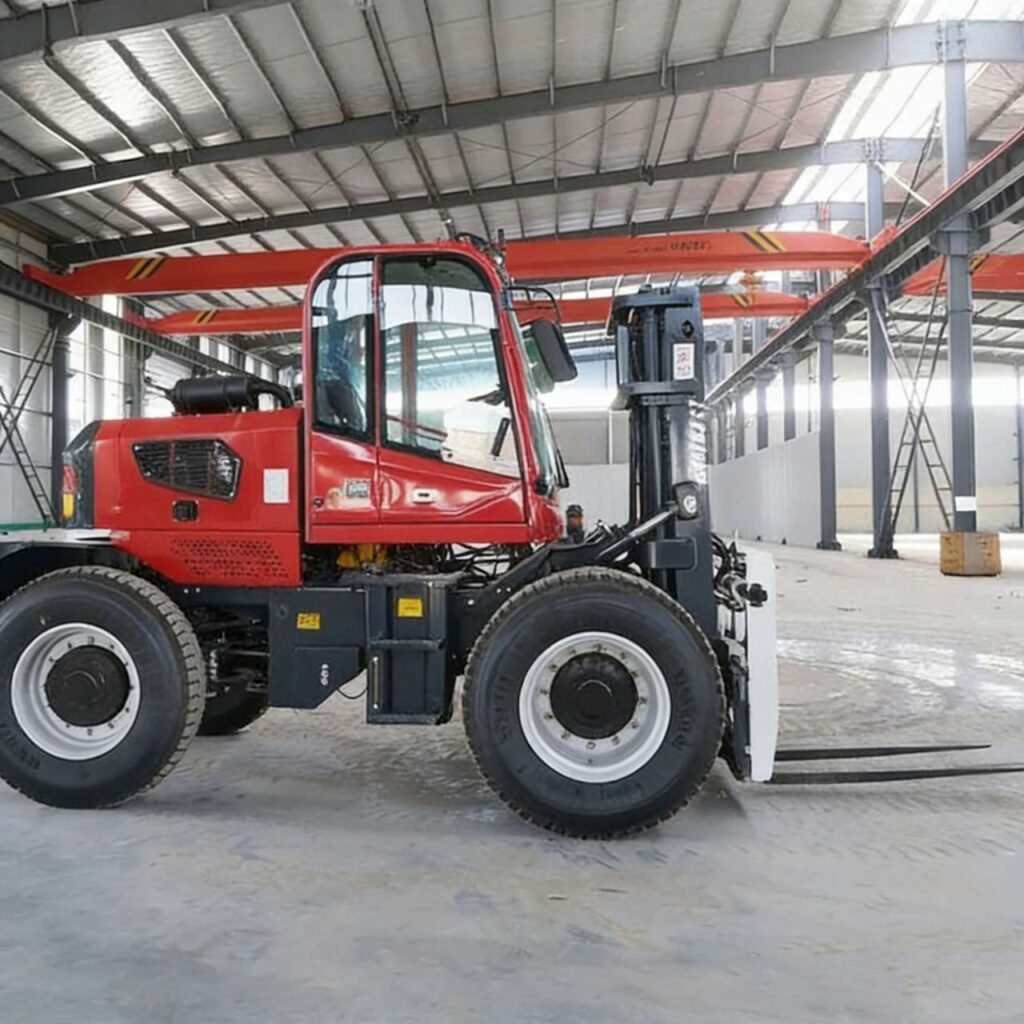

6 Ton Rough Terrain Forklift
Model: LTR60
A Rough Terrain forklift is a heavy-duty lifting machine specifically designed to operate on uneven, muddy, sandy, or rugged outdoor surfaces. Equipped with large pneumatic tires, high ground clearance, and powerful engines, it delivers strong traction and stability in challenging working environments.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
