Model			CPCD50S
Rated capacity	Q	kg	5000
Load center distance	C	mm	500
Power type			Diesel
Driving type			Seated
Wheel base	L1	mm	2100
Tyres
Tyre type			Pneumatic
Wheel number(front/rear)			2X/2
Tyre(front)			300-15-18PR
Tyre(rear)			7.00-12-12PR
Size
Front overhang	L2	mm	565
Mast tilting angle,front/rear	α/β	°	6月12日
Height with mast retraction	H1	mm	2330
Free lifting height	H3	mm	140
Max. lifting height	H	mm	3000
Max. height after lifting	H2	mm	4280
Overall guard height	H4	mm	2245
Fork size: length x width x thickness	LxWxT	mm	1220 x 150 x 55
Overall length(fork excluded)	L’	mm	3110
Overall width	W1	mm	1480
Turning radius	r	mm	2740
Ground clearance of mast	H5	mm	160
Ground clearance of wheel base center(loaded)	H6	mm	200
Lateral fork adjustment Max./Min.	W5	mm	1370/300
Performance
Travelling speed (loaded/unloaded)		km/h	18/19
Lifting speed (loaded/unloaded)		mm/s	400/450
Lowering speed		mm/s	350/400
Gradeability (loaded)		%	20/20
Max. traction force (loaded)		N	21/20
Weight
Total weight		Kg	6400
Combustion -engine
Engine manufacturer/Model (standard)			Xichai 4110
Rated power/Speed		Kw/rpm	60/2200
Max.torque/Speed		Nm/rpm	305/1400~1600
Cylinder number-borexstroke			4-110×125
Engine displacement		L	4.752
Emission			China National ll
Additional data
Service brake/parking brake			Hydraulic/Mechanical
Hydraulic system working pressure		Mpa	20

Diesel Forklift HARMAC

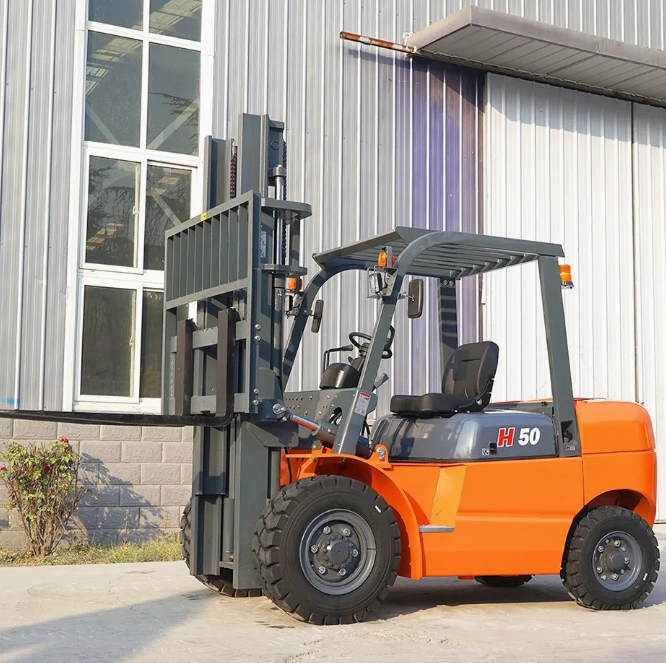

5 Ton Diesel Forklift

Model: CPCD50S

Diesel forklift designed for heavy-duty material handling, featuring high load capacity, fuel efficiency, and stable performance for warehouse and construction applications.

Brand

HARMAC

Warranty

3 Years

ISO CE Certified
