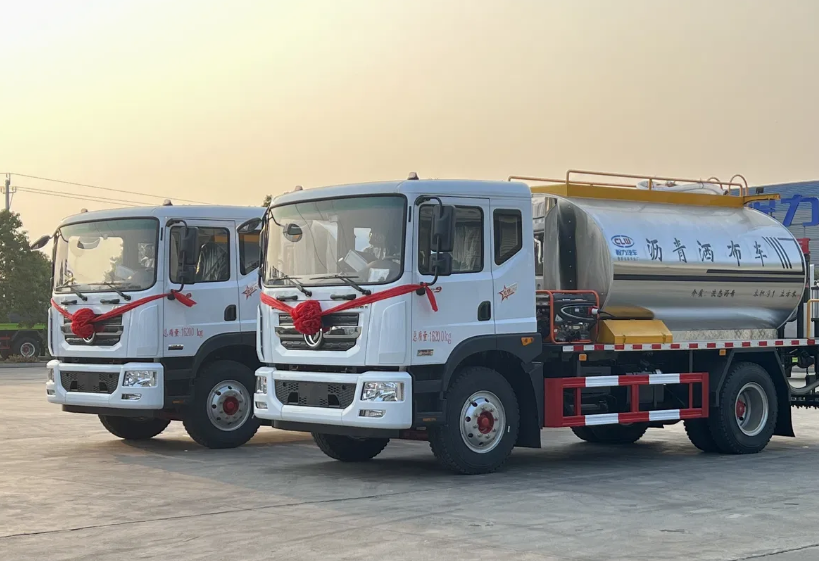

8cbm Asphalt Sprayer Truck, 160HP Engine 34 Nozzles for Effective Road Construction

Name	Asphalt/Bitumen spray Truck	Model	LH5180GLS
Engine power	200hp	Wheelbase	3950mm
Tank volume(L)	10000	G.V.W(Kg)	16200
Payload(Kg)	8885	Kerb weight(Kg)	7850
Tank material	Q235	Insulation layer	Rock wool
Tank exterior	Stainless steel	Overall dimension(mm)	852023503050
Filter	Factory made	Thermal pump	RY40-25-160
Handle gunjet	6m pipe with gunjet	Proportional valves	CL-BLTS120.00
Speed transmitter	GTS211B-N016	Temperature transmitter	WZP-230
Pneumatic butterfly valve	CLD6H3-16C	Globe valve	PN16DN50
Generator	7KW	Operation	Control in cabin
Bitumen pump	QGB680	Rotation of bitumen pump	Adjustable in cabin
Flow rate of bitumen pump	680L/min	No. of rear nozzles	34 Pneumatic nozzles
Nozzle control	One by one	Bitumen spray	0.25-3L/
Spray material	Emulsified asphalt	Conduction oil	Circulation heat with conduction oil
Spray width(m)	≤4.5m	Burner	G20
Spray square	2000-24000m²

Asphalt Distributor Truck DOGNFENG

8cbm Asphalt Sprayer Truck, 160HP Engine 34 Nozzles for Effective Road Construction

Model: LH5180GLS

The Asphalt Distributor Truck is engineered for professional asphalt spraying applications. Equipped with an intelligent control system and reliable heating technology, it provides uniform spraying performance for highways, urban roads, airport runways, and pavement maintenance.

Brand

DOGNFENG

Warranty

3 Years

ISO CE Certified
