Basic Specs	Wheel base	3800+1450 mm
	Overall Dimension (L×W×H)	8600×2590×3400 mm
	Max loading	35000 kg
	Curb weight	14500 kg
	Front overhang/Rear overhang	1410 mm / 1870 mm
	Max Speed	≤85 km/h
Engine	Model	WP10.380E32
	Type	Water-cooled, four strokes, 6 cylinders straight in line, turbocharged
	Fuel type	Diesel
	Min fuel consumption	198g/kW·h
	Rated Power/RPM	280kW/2200rpm (380HP)
	Emission standard	EURO III
	Max Torque/RPM	1600Nm/1500-1800rpm
	Displacement	9726ml
	Fuel tank capacity	400L (Iron)
Transmission	Clutch	#430, Single dry frictional disc, Hydraulic boosting
Transmission	Gearbox	FAST 9JS150A, mechanical type (Fuller Eaton technology), 9 forward + 1 reverse
Chassis	Frame	Fish belly shape, variable width/sections (Benz Technology)
	Frame cross section	317x70x8.5+7+8mm
	Front axle	Double-shoe pneumatic brake, 7.5t non-driving steering axle (Mercedes Benz Tech)
	Middle/Rear axle	Double-shoe pneumatic brake, 13t double reduction driving axle, speed ratio 5.263
Tires	Size	12.00R20 OR 315/80R22.5
Tires	Quantity	11 (10+1 spare)
Electrical	Battery	2×12V/135Ah
	Generator	28V-70A
	Starter	5.58kW/24V
Cab	Type	NG80B left-hand drive, short cab without sleeper
	Structure	Full steel skeleton with double-layer steel plate, tiltable
	Interior	Integral trimming, digital instrument panel, USB/MP3 radio, adjustable seats & steering wheel
	Exterior	Metal bumper, 3 steps, new mirror system, sun visor
Others	Air filter	Desert type

Dump Truck BEIBEN

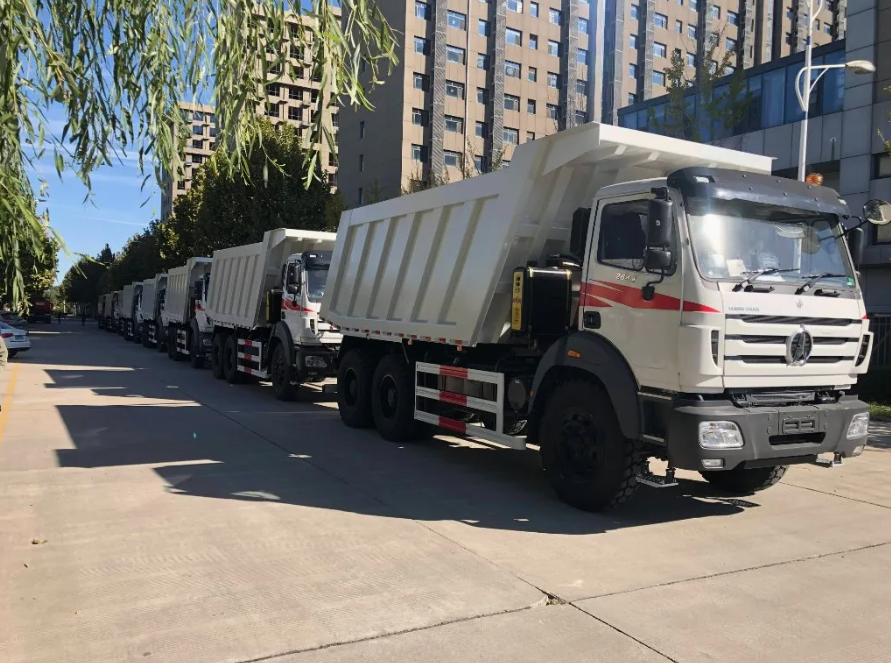

BEIBEN 6X4 Dump Truck

Model: 2639

Dump Truck is a heavy-duty vehicle used to transport and unload bulk materials such as sand, gravel, soil, and ore. It is equipped with a hydraulic system that lifts the truck bed to discharge materials quickly and efficiently. Dump trucks are widely used in mining, construction, and road projects due to their high load capacity and reliable performance.

Brand

BEIBEN

Warranty

3 Years

ISO CE Certified

Worldwide Shipping

Strict QC

Share this product
