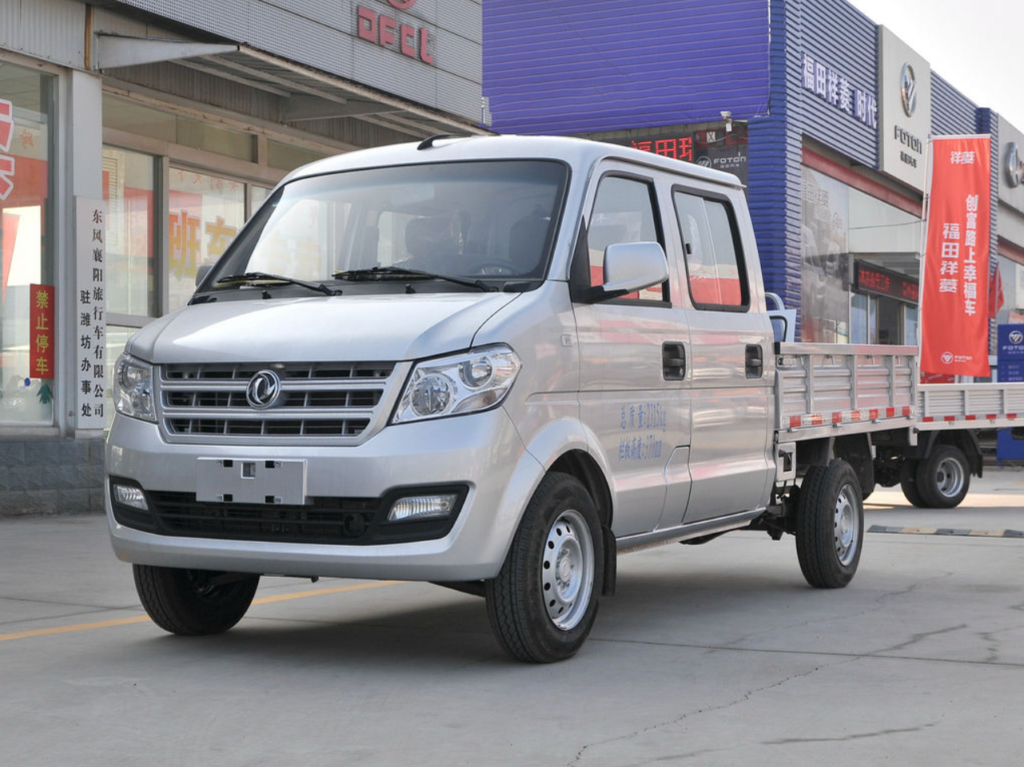

| Model | DFSK C31 L1 | DFSK C32 L1 |
| Engine | DK15-06 | DK15-06 |
| Speed Ratio | Tubular Rear Axle(43/9) | Tubular Rear Axle(43/9) |
| Emission Standard | Europe 6 | Europe 6 |
| Displacement | 1.499 | 1.499 |
| Efi | Delphi MT22.1 | Delphi MT22.1 |
| Transmission Type | 5MT | 5MT |
| Body Type | Semi-Loaded Body, Reinforced Longitudinal Beam | Semi-Loaded Body, Reinforced Longitudinal Beam |
| Drive Mode | Mid-Engine, Rear-Drive | Mid-Engine, Rear-Drive |
| Front Suspension | Mcpherson Independent Suspension | Mcpherson Independent Suspension |
| Rear Suspension | Non-Independent Suspension With 6-Bar Leaf Spring Type, Top-Mounted Leaf Spring | Non-Independent Suspension With 6-Bar Leaf Spring Type, Top-Mounted Leaf Spring |
| Brake Type | Front-Disc Rear Drum, Dual Circuit Hydraulic Brake;7+8 Double Membranes Vacuum Booster | Front-Disc Rear Drum, Dual Circuit Hydraulic Brake;7+8 Double Membranes Vacuum Booster |
| Steering Type | EPS | EPS |
| Clutch Type | Mechanic | Mechanic |
| Tire Model | 185 R14LT 8PR(European Standard) | 185 R14LT 8PR(European Standard) |
| Wheel Rim | silver steel wheel, steel spare tire (silver) | silver steel wheel, steel spare tire (silver) |
| Wheel Rim Cover | Wheel hub center cover(DONGFENG logo,optional SOKON logo) | Wheel hub center cover(DONGFENG logo,optional SOKON logo) |
| Wheel Nut | galvanized nut | basic:galvanized nut |
| optional:chrome plated nut(only applicable for TV03) | ||
| Front/Rear Bumper | body color,black for middle grille | body color, black for middle grille |
| Grille | body color(C27 new shape) | body color(C27 new shape) |
| Front/Rear Mudguard | IA | IA |
| Front Headlamp | electric height adjustment | electric height adjustment |
| Front Fog Light | IA | IA |
| Daytime Running Light | IA | IA |
| Indicator | Yellow light bulb with white shade | Yellow light bulb with white shade |
| Wiper | Front wiper with bone, without rear wiper | Front wiper with bone, without rear wiper |
| Exterior Rear-View Mirror | Standard Exterior Rear-View Mirror, mirror housing in body color, mirror base in black | Standard Exterior Rear-View Mirror, mirror housing in body color, mirror base in black |
| Outside Handle | black | black |
| Glass | lift glass for front door | lift glass for front door, sliding window for middle door |
| Window Glass Lifter | basic;manual front door | basic; manual front and middle door |
| optional:electric front door | optional: electric front door,manual middle door | |
| Outer Cut Water Glue Strip | black | black |
| Rear Headlamp | Double reversing lights, rear combination light strip | Double reversing lights, rear combination light strip |
| Rear Fog Light | Double fog lights, rear combination light strip | Double fog lights, rear combination light strip |
| Retro Reflector | Non-independent, rear combination light strip | Non-independent, rear combination light strip |
| High-Mount Brake Light | NA | basic: NA |
| optional: IA | ||
| Logo | front logo:DONGFENG,optional SOKON | front logo:DONGFENG,optional SOKON |
| Nameplate:hard logo | Nameplate:hard logo | |
| rear mark:C31 | rear mark:C32 | |
| ESC mark | ESC mark | |
| Decal | basic: Decal for back: Logo + DFSK | basic: Decal for back: Logo + DFSK |
| optional:Decal for back: Logo + DFSK | optional:Decal for back: Logo + DFSK | |
| Decal for body | Decal for body | |
| Fuel Tank | 55L | 55L |
| Fuel Tank Opening Mode | Key | Key |
| Interior Trim Style | balck | balck |
| Sun Visor | Gray, double sun visors (standard type),front passenger seat with make-up mirror | Gray, double sun visors (standard type),front passenger seat with make-up mirror |
| Interior Rear-View Mirror | Basic: basic type, gray (from K07) | Basic: basic type, gray (from K07) |
| Optional: anti-dazzle interior rear-view mirror, black | Optional: anti-dazzle interior rear-view mirror, black | |
| Dashboard | V29 Boutique dashboard | V29 Boutique dashboard |
| black main body | black main body | |
| Combination Instrument | Digital(new shape) | Digital(new shape), without door open reminder |
| Multi-Media System | MP3 | MP3 |
| optional: MP5 | ||
| Speaker | 2 | 2 |
| Warm Air Manipulation Mechanism | Knob | Knob |
| Steering Wheel | Basic: normal steering wheel(Dongfeng logo, optional SOKON logo) | Basic: normal steering wheel(Dongfeng logo, optional SOKON logo) |
| Optional: multifunction steering wheel with airbag | Optional: multifunction steering wheel with airbag | |
| Combination Switch And Cover | black | black |
| Gear-Shift | black main body | black main body |
| Hand Brake | black | black |
| Control Box + Rear Cover + Cup Holder | black, with cup holder | black, with cup holder |
| Central Armrest | NA | NA |
| Interior Lights (Front/Middle/Rear) | Integrated front reading light and interior view mirror | Integrated front reading light and interior view mirror |
| Front Door Light Switch | basic:NA | basic:NA |
| optional:IA | optional:IA | |
| Rear Door Light Switch | NA | basic:NA |
| optional:IA | ||
| Horn | Basin type | Basin type |
| A/C | basic:NA | basic:NA |
| optional:single steam | optional:single steam | |
| optional: double-steam(only applicable for TV03) | ||
| Interior Trim Panels (Door/Side) | Basic : front door: with fire retardant foam, standard heat bonding line, black artificial leather. | Basic : front door: with fire retardant foam, standard heat bonding line,black artificial leather, |
| Optional : front door: injection molded interior panel, black body, brushed metal armrest cover, with front door triangle trim | Optional : front door: injection molded interior panel, black body, brushed metal armrest cover, with front door triangle trim; middle door:front door: with fire retardant foam, standard heat bonding line, black artificial leather | |
| Pillar Trim | A-pillar trim: Gray | A-pillar trim: Gray |
| Top Roof | Hard top, non-woven, gray | Hard top, non-woven, gray |
| Safety Handle | 1,gray(V29) | 3, gray(V29) |
| Handrail + Crank Handle | Basic: black, same as V21 | Basic: black, same as V22 |
| Optional: black, interior panel with its own armrest | Optional: black, interior panel with its own armrest | |
| Interior Handle | Basic: Front door: black, same as V21 | Basic: Front and middle door: black, same as V22 |
| Optional: Front door: black (chrome handle), same as V21 | Optional: Front door: black (chrome handle), same as V22,middle door: black, same as V22 | |
| Locking Button + Bushing | Basic: Front door: black | Basic: Front and middle door: black |
| Option: Front door: chrome + red warning strip | Optional: Front door: chrome + red warning strip,middle door: black | |
| Seats | New shape, fabric:M085+M086 | basic: fabric( cloth ):M085=M085+M086 |
| optional: fabric( leather ):K033=P028+P029(only applicable for TV03) | ||
| Front-Row Seats | driver seat and front passenger seat with sliding rail, headrest is fixed on the rear fence panel, seat belt lock on the floor | new shape seats, 4-way adjustment for driver seat and front passenger seat , adjustable headrest , seat belt lock on the floor |
| Second-Row Seats | NA | one-piece seat for 3 people, with headrest |
| Safety Belt | black | black, normal type |
| front row:3+3, normal type | front row:3+3, rear row:3+2+3, | |
| Floor Mat | Cabin carpet, engine compartment insulation blanket: gray lychee pattern (M023) 1.6mm foam | Cabin carpet: gray lychee pattern, M023: 1.6mm foam |
| engine compartment insulation carpet:gray lychee pattern, M023: 1.6mm foam | ||
| rear floor carpet: gray lychee pattern, M023: 1.6mm foam, rear floor is not wrapped | ||
| Front Panel Heat Insulation Pad | IA | IA |
| Floor Mat | black | black |
| Flooring Strips/Steps | black | black |
| Ash Box | IA | IA |
| Cigarette Lighter | IA | IA |
| Air Bag | basic:NA | basic:NA |
| optional:double airbags | optional:double airbags | |
| Child Lock | NA | basic:NA |
| optional:child lock in back door(only applicable for TV03) | ||
| ABS/EBD | IA | IA |
| Reversing Camera | NA | basic:NA |
| optional:IA | ||
| Central Lock | basic:NA | basic:NA |
| optional:Front door with mechanical central control | optional:Front door with mechanical central control | |
| optional:Front door with remote central control | ||
| Key | Integrated key(Dongfeng logo, optional SOKON logo) | basic:integrated key(Dongfeng logo, optional SOKON logo) |
| optional: optional remote control(1 remote control key + 1 normal key, Dongfeng logo, optional SOKON logo) | ||
| ESP/ESC | IA | IA |
| EBA/BAS/BA/EVA | IA | IA |
| Cargo Type | Basic: 2.9m cargo box, without rear fence and lift rail | Basic: 2.3m cargo box, without rear fence and lift rail |
| Optional: 2.9m cargo box with rear fence | Optional: 2.3m cargo box with rear fence | |
| Optional: 2.1m cargo box with rear fence | ||
| Guard Bar For Rear Side Window Glass | IA | IA |
| Rear Metal Bumper | IA | IA |
| Tool Box | IA | NA |
