| Driving Type | Manual Left hand drive |
| Drive Wheel | 6×4 |
| Number of axles | 3 |
| Wheelbase(mm) | 3900+1370 |
| Number of tire | 10+1 |
| Tire specification | 11.00 R20 |
| Max speed (km/h) | 90 |
| Overall dimensions(mm) | 8550×2550×3450 |
| GVW(kg) | 31500 |
| Curb weight(kg) | 11500 |
| Control System | Electrically hydraulic system |
| Axle loading(kg) | 5500/13000/13000 |
| Transmission | Manual transmission with 12 speed forward |
| Frame | 300 (8+6) |
| Cab | Hercules flat top cab,allowable 3 passengers in cab |
| Other | Four point suspension, airbag seats, electric doors and windows, camel battery, black fuel tank+gas tank, Ruili brake valve, air conditioning for heating and cooling. |
| Engine(Other Engines Optional) | |
| Model | CUMMINS |
| Fuel | Diesel |
| Emission standard | Euro 3 |
| Number of cylinder | 6 |
| Cylinder arrangement | Direct-line |
| Electric system | 24(V) |
| Power | 371/hp |
| Air intake form | Supercharged and inter-cooled |
| Upper & Equipment | |
| Bucket dimension | 5800x2300x1000(mm) |
| Compartment material | Q235 |
| Dump type | Front hydraulic cylinder self-lifting and self-unloading |
| Hydraulic cylinder diameter | 160mm |
| Hydraulic cylinder type | Domestic |
| Hydraulic pressure | 250Mpa |
| Gear pump flow rate | 100 liter/minute |
| The thickness of the side | 6mm |
| The thickness of the bottom | 8mm |
| Color | Optional according to customer requirement |
Dump Truck
DONGFENG

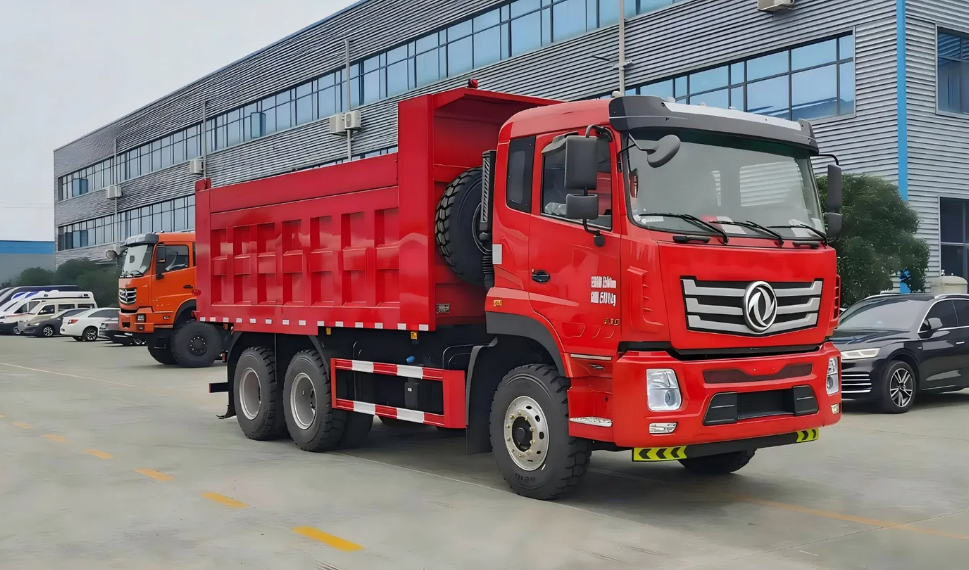

DONGFENG 6X4 Dump Truck
Model: 371
Dump Truck is a heavy-duty vehicle used to transport and unload bulk materials such as sand, gravel, soil, and ore. It is equipped with a hydraulic system that lifts the truck bed to discharge materials quickly and efficiently. Dump trucks are widely used in mining, construction, and road projects due to their high load capacity and reliable performance.
Brand
DONGFENG
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
