| Product Name | Hook arm Garbage Truck |
| Model | CLW5161ZXXBHB |
| Chassis No. | Dongfeng FAW HOWO SHACMAN |
| Driving Type | 6×4 |
| Gross Weight | 25000kg |
| Curb Weight | 10000kg |
| Dimension | 10500× 2500× 3600mm |
| Wheelbase | 4350+1350(mm) |
| Front Axle Loading Capacity | 5000kg |
| Rear Axle Loading Capacity | 10000kg(Two-axis group) |
| Approach angle | 19° |
| Departure angle | 20° |
| Front Suspension | 1260mm |
| Rear Suspension | 1340mm |
| Tire | 11.00R20 |
| Max Speed | 89 (Km/h) |
| Engine prower | 340Hp/250kw |
| Displacement | 8156ml |
| Emission Standard | Euro 3/4/5/6 |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling) |
| Gear Box | 5 forward and 1 reverse |
| Hook arm specifications (PALFINGER HOOK arm are optional) | |
| Tank Volume | 3CBM-25CBM Customized per customer’s request |
| The Hooking Capacity(T) | 3Ton |
| Tank Material thickness | Side:3mm Bottom:4mm |
| The Hook arm material | Q40,Q50 high strength steel |
| Loading cycle time | ≤40 s |
| Unload garbage time | ≤45s |
| Control method | Automatic,Manual |
| Maximum pressure of hydraulic system | 20MPa |
| Control System | Siemens PLC |
| Engine power control | Fully automatic control |

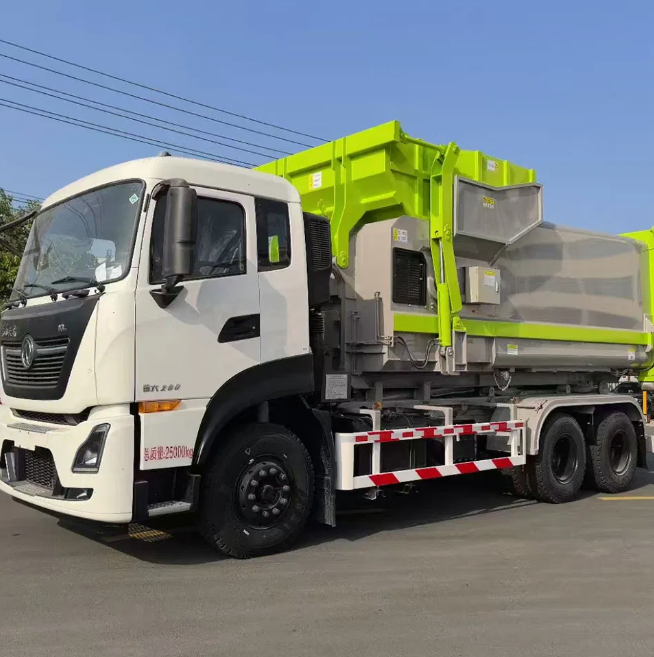

Hook Lift Truck
DONGFENG
Dongfeng Solid Waste Management Garbage Compactor Truck
Model: CLW5161ZXXBHB
The Hook Lift Truck is designed for fast and efficient container handling. It provides flexible operation, high payload capacity, and is widely used in waste collection, construction, and logistics.
Brand
DONGFENG
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
