| Item | Unit | XZ420E | |
| Engine | Model | – | QSC8.3-C240 |
| Power rating | kW/r/min | 179/2200 | |
| Thruet-Pull | Max pull/thrust force | kN | 420/500 |
| Max pull/thrust speeed | m/min | 42 | |
| Rotation | Torque | N·m | 18500 |
| Max spindle speed | r/min | 145 | |
| Mud pump | Max fiow rate | L/min | 450 |
| Max pressure | MPa | 8 | |
| Pipe | Diameter×Length | mm×m | φ83×3 |
| Loader Crane | Lifting weight | t | / |
| Loading capacity | t·m | / | |
| Max inclination angle | ° | 20 | |
| Max backreamer diameter | mm | φ900 | |
| Weight | t | 11.2 | |
| Diamension(L×W×H) | mm | 6500×2250×2450 | |
| Power Station dimension | mm | – | |
| Power Station weight | t | – | |
Drilling Equipment
XCMG

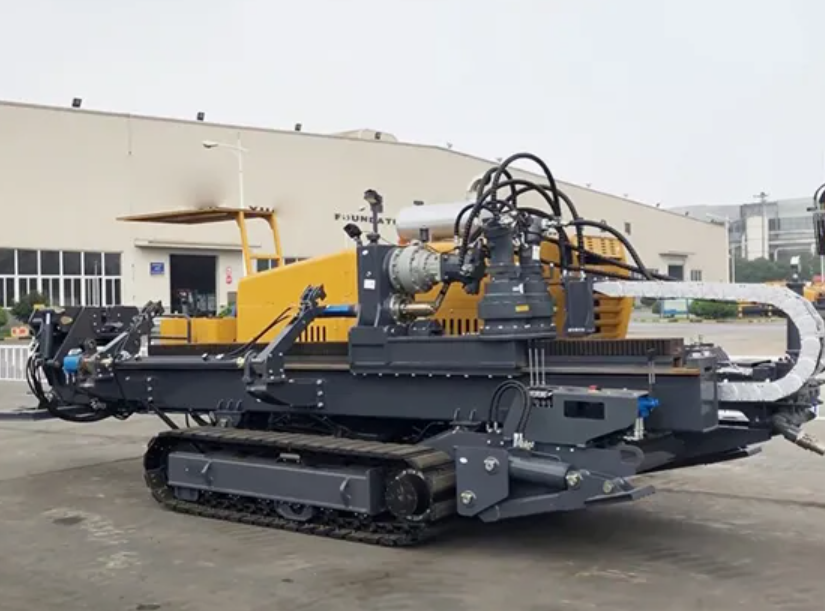

Horizontal Directional Drilling Machine XZ420E
Model: XZ420E
Horizontal Directional Drill (HDD) is a trenchless drilling machine used to install underground pipes and cables with minimal surface disruption, widely applied in utility and infrastructure construction.
Brand
XCMG
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
