| Announcement Model: | ZZ3257N3647E1 | Drive type: | 6X4 |
| Wheelbase: | 3625+1350mm | Motor: | SINOTRUK D10.38-50 |
| Gearbox: | China National Heavy Duty Truck HW19712 | Rear axle ratio: | 5.45 |
| Body length: | 8.145 meters | Body width: | 2.496 meters |
| Vehicle Height: | 3.45 meters | Front track: | 2022mm |
| Rear track: | 1830/1830mm | Vehicle weight: | 12.12 tons |
| Rated load: | 12.74 tons | Total mass: | 25 tons |
| Tonnage Class: | Heavy trucks | Approach Angle: | 14 degrees |
| Departure Corner: | 26 degrees | Origin: | Jinan, Shandong |
| Market Segments: | Urban construction muck, mining engineering | Total Gear Ratio: | 5.45 |
| Fuel Type: | diesel fuel | ||
| Engine parameters | |||
| Engine Model: | SINOTRUK D10.38-50 | Engine Brand: | China National Heavy Duty Truck |
| Number of cylinders: | 6 cylinders | Fuel Type: | diesel fuel |
| Displacement: | 9.726L | Emission Standards: | National V |
| Maximum horsepower: | 380 hp | Maximum output power: | 274kW |
| Maximum torque: | 1560N·m | Maximum Torque Speed: | 1200-1500rpm |
| Rated speed: | 2000rpm | Engine type: | In-line six-cylinder, water-cooled, four-stroke, supercharged intercooled, high-pressure common rail |
| Container parameters | |||
| Cargo length: | 5.4 meters | Cargo box width: | 2.35 meters |
| Cargo box height: | 1.5 meters | Cargo box form: | Dump |
| Cab parameters | |||
| Cab: | Half-height ceilinged single bedroom | Cab suspension: | Four-point mechanical suspension |
| Main Driver’s Seat Type: | Airbag shock-absorbing seats | Skylight: | Manual sunroof |
| Transmission parameters | |||
| Transmission model: | China National Heavy Duty Truck HW19712 | Transmission brand: | China National Heavy Duty Truck |
| Forward gear: | 12 gears | Number of reverses: | 2 pcs |
| fuel tank | |||
| Fuel Tank Material: | Aluminum alloy | Fuel Tank Capacity: | 400L |
| Chassis parameters | |||
| Front axle description: | HF9 | Permissible load on the front axle: | 7000kg |
| Rear axle description: | AC16 | Permissible load on rear axle: | 18000 kg (parallel twin shaft). |
| Ratio: | 5.45 | Suspension Type (Front/Rear): | Leaf springs |
| Number of springs: | 10\12 | ||
| tyre | |||
| Tire Specifications: | 12.00R20 | Number of tires: | 10 pcs |
Dump Truck
HOWO

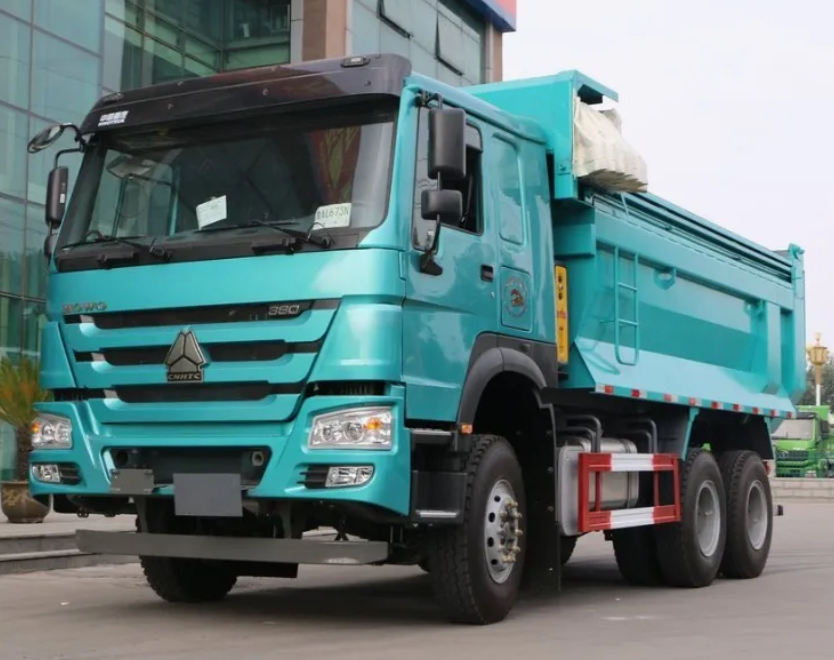

HOWO 6X4 Dump Truck
Model: ZZ3257N3647E1
Dump Truck is a heavy-duty vehicle used to transport and unload bulk materials such as sand, gravel, soil, and ore. It is equipped with a hydraulic system that lifts the truck bed to discharge materials quickly and efficiently. Dump trucks are widely used in mining, construction, and road projects due to their high load capacity and reliable performance.
Brand
HOWO
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
