| Total quality | 19100 (Kg) | Volume of tank | 12CBM |
| Load rating | 8000 (kg) | Overall dimension mm | 8570X2500X3580 |
| Curb weight | 10550(kg) | Number of bridge | 2+4 |
| Approach Angle/departure Angle | 17/11 (°) | Forward overhang | 1430/2440 |
| Number of shaft | 2 | wheelbase (mm) | 4700 |
| Axle weight (Kg) | 3550/7000 | Top speed | 95(Km/h) |
| [Chassis technical parameters] | |||
| Chassis models | ZZ5207TXFV471GF5 | ||
| Fuel type | diesel | Tire size | 315/80R22.5,12.00R20 |
| Before wheel track | 1430 (mm) | After wheel track | 2230 (mm) |
| Emission standards | Euro III | ||
| Engine type | Engine manufacturer | Displacement(ml) | Power(Kw) |
| WP8.350E1 | Weichai Power Co., Ltd. | 7800 | 257 |
| Bridge instruction | Full metal enclosed cab with flat head, panoramic curved windshield. New front face mask, front bumper, front assembly lamps, car doors and Windows, front face mask. | ||
| tanks | Q235 quality carbon steel (5mm) material, welded structure, with vertical and horizontal anti-swing plate built in, has been treated with high-tech anti-corrosion. Choose stainless steel material. | ||
| The pump room | Central or rear pump, pump room on the left and right side, equipment box on the left side of the new easy to pull high-strength aluminum alloy shutter door. | ||
| Equipment boxes | With the introduction of European technology to produce aluminum alloy profiles of hidden tower technology manufacturing, the whole socket structure. | ||
| Volume of tank | 8.0 m3; Tank size (length x width x height):2290 x 2450 x 1500(mm); | ||
| Gun range | Water 80 m or more | ||
| Fire pump model | Cb20.10/30.60 medium and low pressure vehicle fire pump | ||
| Rated flow/pressure | 60L/s @1.0MPa 30L/s @2.0MPa | ||
Trucks and Vehicles

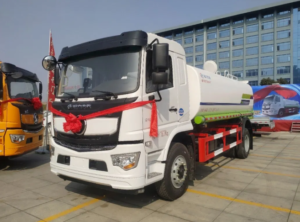

Multifunctional 15 Cubic Meters Water Spray Vehicle for Garden Irrigation
