| Emission Standard | Euro 2/3/4/5/6 |
| Gross Vehicle Weight | 18000 kg |
| Curb Weight | 7150 kg |
| Rated Weight | 10655,10720 kg |
| Water Tank Capacity | 15 m³ |
| Wheelbase | 4000 mm |
| Overall Size(L*W*H) | 8200,8700,7810,8310×2500×3200 mm |
| Axle Load | 6500/11500 kg |
| Fuel | Diesel |
| Drive Model | 4×2 |
| Max.speed | 89 km/h |
| Cab | L5000 cab, original air conditioner, air suspension seat, |
| central locking key, electric windows. | |
| Chassis & Engine Parameters | |
| Chassis Brand | Shacman |
| Chassis Model | SX1189LA1F1C |
| Tire Specification | 10.00R20 |
| Transmission | Fast 8-speed Transmission |
| Engine | Weichai, 240hp |
| Vehicle Specifications | |
| Water Tank Capacity | 14.7 m³ |
| Tank Material | Q235B |
| Tank Thickness | 4 mm |
| Diaphragm Thickness | 3 mm |
| Head Thickness | 3 mm |
| Functions | Equipped with front flush, rear sprinkling, side spray and rear |
| adjustable water cannon (jet/spray mode). It adopts 60-90 sprinkler pump | |
| with pump inlet and outlet, one DN60 fire connector, two suction hoses, | |
| two anti-wave baffles and enlarged rear working platform. | |
Trucks and Vehicles
DONGFENG

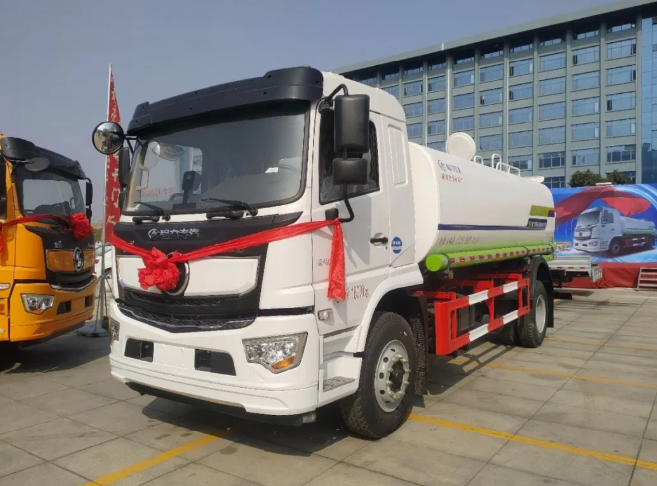

Multifunctional 15 Cubic Meters Water Spray Vehicle for Garden Irrigation
Model: SX1189LA1F1C
Professional water tank trucks from China with reliable performance, customizable tank capacities, and worldwide export service.
Brand
DONGFENG
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
