MODEL			PRO988Q
Size	Overall length(mm)		5730
	Overall width(mm)		2540
	Overall height(mm)		2940
Weight (kg)			3670
Engine	Model		V3800-DI-T-ET02
	Type		Vertical water-cooled 4-cylinder turbocharged diesel engine
	Total displacement (L)		3.769
	Rated output/rpm ([kw](r/min))		72.9/2600
	Fuel		0 # diesel oil
	Fuel tank capacity(L)		140
	Starting method		starter motor
	Battery(V.Ah)		12*100
Travel unit	Track	Ground length × width (mm)	500*1890
		Centre distance(mm)	1350
		Average ground pressure(kpa)	19
	Minimum ground clearance(mm)		290
	Transmission mode		Vertical water-cooled four-cylinder turbocharged diesel engine
	Speed		Forward stepless forced backward stepless [vice gear each band 3]
	Running speed (m/s)		low speed:0~3.1; cruising speed:0~4.86; hign speed:0~7.56
	Harvest width (front-end sub-interval of the grass) (mm)		2300
	Cutter width(mm)		2210
	Harvest height (down)range (mm)		40 more cutter tip
	Lodging adapation (degree)		Shun-cut:< 85°, Against the cut:< 70°
	Feed quantity (kg/s)		4
Threshing unit	Threshing system		Spike-tooth axial
	Threshing cylinder	Threshing teeth type	spike tooth
					Diameter × width(mm)	Φ620 × 2210
		Rotational speed(rpm)
		Filtering		Vibrating screen forced the winnowing [3] level air classifiers
	Uereal discharge unit	Vally box set	Capacity (L)	1400
Discharge mode			auto
Warning lights and equipments		Vertical transmission filler and then plug screw rob cereal	○
		Sets valley box filled with	○
		Water temprature	○
		Battery charging	○
		Engine oil pressure	○
Suitable crops			rice / wheat/rape
Operational efficiency (hM2 / h)			rice : 0.3~0.5 wheat : 0.4~0.64

Agricultrual Equipment HARMAC

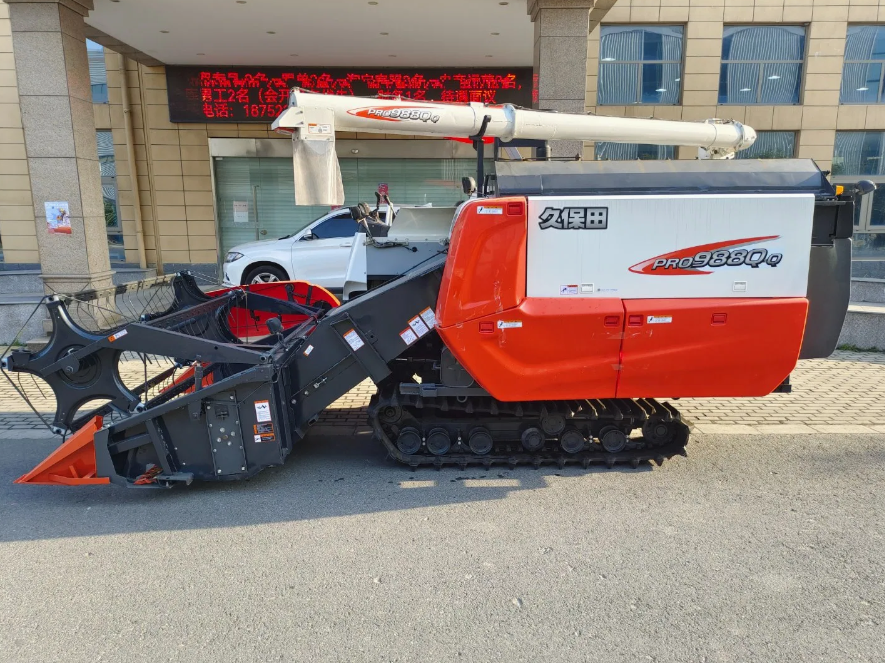

Rice and Wheat Harvester Machine

Model: PRO988Q

A harvester is a machine used in agriculture to automate the process of harvesting crops. It is designed to efficiently collect mature crops from the fields, reducing the need for manual labor and increasing productivity.

Brand

HARMAC

Warranty

3 Years
