| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 9800x2496x3600 |
| Wheel base (mm) | 4325+1350 | |
| Wheel track (front/rear) (mm) | 2022/1830 | |
| Approach/Departure angle(°) | 16/15 | |
| Weight in KGS | Tare Weight | 13030 |
| Rated loading Capacity | 18840 | |
| Front axles loading capacity | 1×9000 | |
| Rear axles loading capacity | 2×16000 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Brand | WEICHAI |
| Model | WP10.310E32 | |
| Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 310HP | |
| Emission standard | Euro-2 | |
| Gearbox | 8JS118, 8 forwards & 2 reverse | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 400 | |
| Tire | 12R22.5 tubeless tire, | |
| Brakes | Service brake: dual circuit compressed air brake | |
| Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels | ||
| Auxiliary brake: engine exhaust valve brake | ||
| Tanker Body | ||
| Volume | 20CBM, 20000Liters, 20M3. | |
| Thickness | Tanker body: 6mm, End plate: 6mm | |
| Tank material | Carbon Steel, Stainless steel. Aluminum Alloy for options. | |
| Independent compartment | 2 independent compartments, Customized as requirement | |
| Aluminum alloy API manhole cover, DN500mm, 2 sets with 2 breather valve | ||
| 2 sets of DN100mm discharging valves | ||
| 4″ rubber hose, 2 pcs, 6m long | ||
Fuel Tanker Truck
SAHCMAN

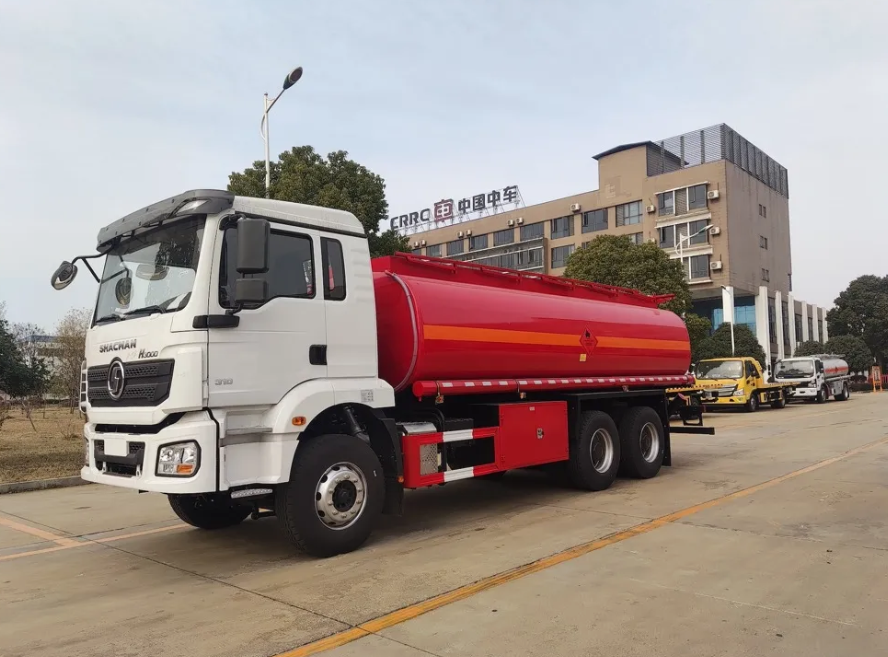

SAHCMAN 20,000 Liters 6X4 Fuel Tanker Truck
Model: SAHCMAN 6X4
A fuel tanker truck is a specialized transport vehicle designed for carrying and delivering liquid fuels such as diesel, gasoline, and petroleum products safely and efficiently. It is widely used in fuel distribution, logistics, mining, and industrial operations.
Brand
SAHCMAN
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
