General	1	Model		FD150	FD160	FD180
	2	Power Type		Diesel	Diesel	Diesel
	3	Rated Capacity	kg	15000	16000	18000
	4	Load Centre	mm	900	900	900
Characteristic&Dimension	5	Lift Height	mm	3000	4000	4000
	6	Fork Size(L×W×T)	mm	1820×200×100	1820×200×100	1820×200×100
	7	Mast Tilt Angle(F/R)	Deg	6°/12°	6°/12°	6°/12°
	8	Fork Overhang (Wheel center to fork face)	mm	900	900	920
	9	Ground Clearance(Bottom of mast)	mm	250	250	250
	10	Length to face of fork(Without fork)	mm	5430	5430	5430
	11	Overall Width	mm	2610	2610	2610
	12	Mast Lowered Height	mm	3160	3660	3660
	13	Mast Extended Height(With backrest)	mm	4655	5655	5655
	14	Overhead Guard Height	mm	3020	3020	3020
	15	Turning Radius (outside)	mm	5300	5300	5300
Performance	16	Travel (Full load)	km/h	37	37	37
	17	Lifting (Full load)	mm/s	300	290	270
	18	Max.Gradeability	%	23	22	20
	19	Tyre Front	mm	12.00-24-20PR	12.00-24-24PR	12.00-24-24PR
	20	Tyre Rear	mm	12.00-20-20PR	12.00-20-20PR	12.00-20-20PR
	21	Wheelbase	mm	3600	3600	3600
	22	Self weight	kg	22100	23800	23800
Power&Transmission	23	Battery Voltage/Capacity	V/Ah	24/240	24/240	24/240
	24	Engine Model		CUMMINS	CUMMINS	CUMMINS
	25	Engine Manufacture		QSB6.7	QSB6.7	QSB6.7
	26	Engine Rated output/r.p.m.	kw	129/2200	129/2200	140/2200
	27	Engine Rated torque/r.p.m.	N·m	800/1500	800/1500	800/1500
	28	Engine No.of Cylinder		6	6	6
	29	Engine Bore×Stroke	L	107×124	107×124	107×124
	30	Engine Displacement	cc	6700	6700	6700
	31	Engine Fuel Tank Capacity	L	350	350	350
	32	Transmission Type		Hydraulic	Hydraulic	Hydraulic

Diesel Forklift HARMAC

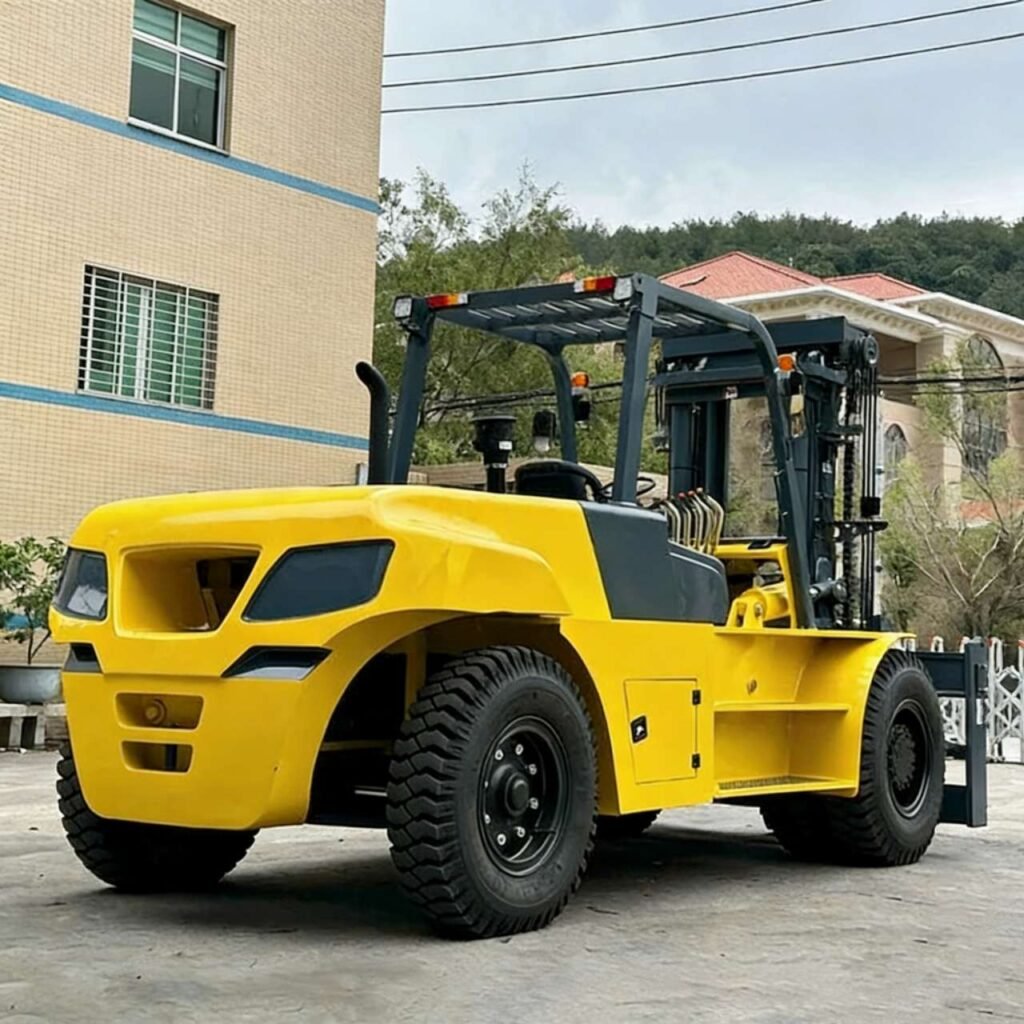

16 Ton Diesel Forklift

Model: FD160

Diesel forklift designed for heavy-duty material handling, featuring high load capacity, fuel efficiency, and stable performance for warehouse and construction applications.

Brand

HARMAC

Warranty

3 Years

ISO CE Certified

Worldwide Shipping

Strict QC
