| Maximum dump height under bucket at 45°(mm) | 3230 | 3230 |
| Dump Reach at full height(mm) | 1045 | 1045 |
| Maximum height pin(mm) | 3866 | 3866 |
| Dump angle(°) | 55 | 55 |
| Below ground level digging depth(mm) | 92 | 100 |
| Maximum lifting capacity @max height(kg) | 2500 | 2000 |
| Bucket Capacity(m3) | 1.2 | 1.2 |
| Bucket breakout force(KN) | 54 | 54 |
| BACKHOE | ||
| Swinging angle(°) | 190 | 190 |
| Maximum reach from swing center(mm) | 5587 | 6420 |
| Maximum operating height (mm) | 5718 | 6400 |
| Maximum loading height(mm) | 3736 | 4426 |
| Maximum digging depth(mm) | 3620 | 4580 |
| Bucket rotation(°) | 200 | 200 |
| Backhoe Capacity(m3) | 0.3 | 0.3 |
| Maximum Digging Force(kgf) | 5100 | 5100 |
| OVERALL DIMENSIONS | ||
| Boom height(mm) | 3632 | 3632 |
| Wheel base(mm) | 2340 | 2340 |
| Cab height(mm) | 3100 | 3100 |
| Overall width (mm) | 2500 | 2500 |
| Bucket width(mm) | 2450 | 2420 |
| Overall lenght boom fold | 6260 | 6260 |
| Minimum ground clearence(mm) | 450 | 450 |
| Operating weight(Kg) | 9950 | 10350 |
Backhoe Loader
HARMAC

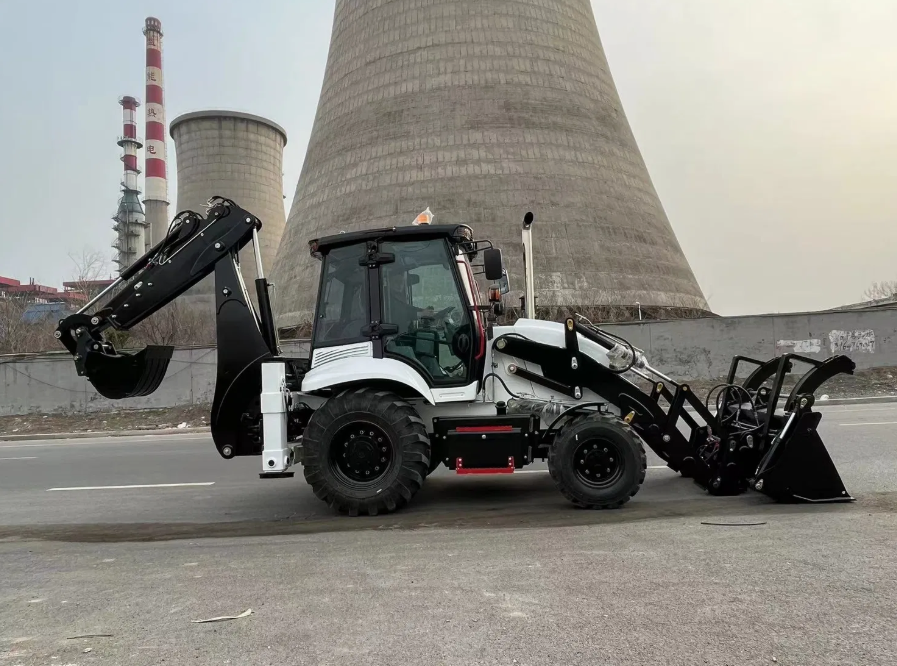

2000KG Backhoe Loader
Model: MC920T
A Backhoe Loader is a versatile construction machine that combines a front loader bucket and a rear backhoe excavator on a single chassis, allowing it to perform both loading and digging operations efficiently. Designed for multi-purpose use, it is widely recognized as one of the most practical and cost-effective machines for small to medium construction projects.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
