| Maximum lifting capacity | t | 25 |
| Full extension main boom | m | 44 |
| Jib | m | 8 |
| Maximum lifting height | m | 52.5 |
| Maximum lifting moment | kN.m | 1266 |
| Maximum boom load | t | 8 |
| Minimum turning radius | m | 10.5 |
| Maximum travel speed | km/h | 90 |
| Maximum climbing gradient | % | 45 |
| Outrigger span (Horizontal*Vertical) | m | 6.4 * 5.5 |
| Counterweight | t | 7 |
| Overall dimensions(L*W*H) | mm | 13620 * 2550 * 3500 |
| Engine model | – | Weichai WP8.320E62 |
| Engine rated power | kW/rpm | 235 / 2100 |
| Engine maximum output torque | N.m/rpm | 1300 (1200~1700) |
| Transmission | – | FAST 9-speed (with synchronizer) |
| Tires | – | 315/80R22.5 + 12R22.5 |
Lifting Equipment
HARMAC

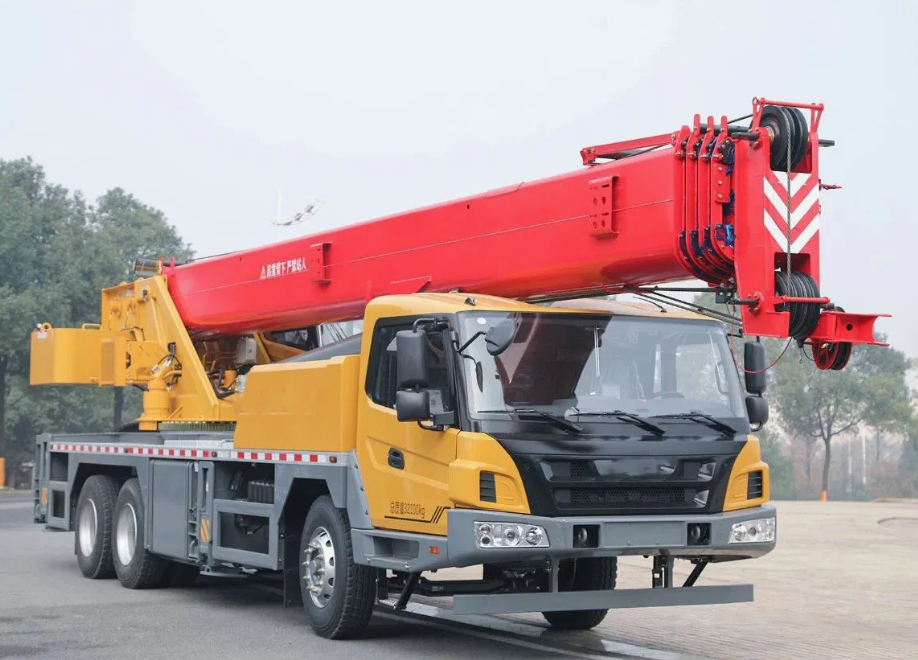

25 Ton Truck Mounted Crane
Model: STC250C5-1
A Truck Mounted Crane is a lifting machine installed on a truck chassis, combining transportation and lifting capabilities in one efficient unit. It is designed for loading, unloading, and transporting heavy materials while providing flexible lifting operations at different job sites.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
