Item			Design details
Item			FD120	FD150	FD160	FD200	FD250	FD300	FD350
Features	Rated Load	Q(t)	12	15	16	20	25	30	35
	Load center	c(mm)	600	900	900	1250	1250	1250	1250
	Wheelbase	y(mm)	3000	3800	3800	4000	4400	4800	4800
Weight	Weight	kg	18000	22000	25000	32500	35000	40000	43000
Chassis	Tyre Specs.:Front		10.00-20-16PR	12.00-24-18PR	12.00-24-18PR	14.00-24-28PR	14.00-24-28PR	14.00-24-32PR	16.00-25-32PR
	Tyre Specs.:Rear		10.00-20-16PR	12.00-20-18PR	12.00-20-18PR	14.00-24-28PR	14.00-24-28PR	14.00-24-32PR	16.00-25-32PR
	Tyres Qty,front/rear(X-drive wheels)		4\2	4\2	4\2	4\2	4\2	4\2	4\2
	Wheel tread:Front	b10(mm)	1677	2060	2060	2200	2200	2420	2400
	Wheel tread:Rear	b11(mm)	2013	2330	2330	2390	2390	2390	2450
Dimension	Mast/carriage tilt angle(front/rear)	Degree(°)	6\12	6\12	6\12	6\12	6\12	6\12	6\12
	Mast height(fork lowering)	h1(mm)	3090	3625	3625	3860	3860	3950	4010
	Mast lifting height	h3(mm)	3000	3500	3500	3500	3500	3500	3500
	Max.lifting height	h4(mm)	4590	5375	5375	5610	5610	5700	5760
	Height to head guard(height to cab)	h6(mm)	3000	3365	3365	3510	3510	3800	3860
	Overall height(with forks)	l1(mm)	6055	7640	7640	8340	9190	9590	9700
	Fork front vertical surface to the rear end of the vehicle	l2(mm)	4855	5840	5840	6345	6745	7150	7150
	Overall width	b1/b2(mm)	2250	2750	2750	3050	3050	3200	3320
	Fork dimension	s/e(mm)	1200X180X90	1800X180X90	1800X180X90	2000X260X100	2440X300X110	2440X320X110	2440X340X125
	Fork carriage width	b3(mm)	2200	2380	2380	3060	3060	3100	3000
	Mast min ground clearance(with load)	m1(mm)	225	265	265	300	300	350	400
	Wheelbase center min ground clearance(with load)	m2(mm)	350	325	325	420	420	410	460
	Min.Turning radius	Wa(mm)	4450	5800	5800	6250	6700	7260	7260
	Travel speed(with load/without load)	km/h	23/26	26/30	26/30	26/30	25/29	24/28	25/28
Performance	Max.lifting speed(with load/without load)	mm/s	220/270	250/260	250/260	260/270	260/270	260/280	260/280
	Max.Lowering speed(with load/without load)	mm/s	450/300	430/330	430/330	310/260	315/260	250/180	250/180
	Traction	N	9000	15000	15000	17000	17000	22000	22000
	Gradeablity(with load/without load)	%	20/22	20/22	20/21	20/22	20/21	20/21	20/20
	Driving brake		Hydraulic clamp disc	Hydraulic clamp disc	Hydraulic clamp disc	Hydraulic clamp disc	Hydraulic clamp disc	Hydraulic clamp disc	Hydraulic clamp disc
	Engine brand/model	Optional one	Yuchai engine	Yuchai engine	Yuchai engine	Weichai engine	Weichai engine	Weichai engine	Weichai engine
Engine			YC6J150-T301	YC6J175-T302	YC6J175-T302	WP10G220E343	WP10G220E343	WO10G240E341	WO10G240E341
			YC6J150-T301	6.494L 129KW 2200rpm	6.494L 129KW 2200rpm	9.726L 162KW 2000rpm	9.726L 162KW 2000rpm	9.726L 178KW 2200rpm	9.726L 178KW 2200rpm
		Optional two	Dongfeng Cummins	Dongfeng Cummins	Dongfeng Cummins	Dongfeng Cummins	Dongfeng Cummins	Dongfeng Cummins	Dongfeng Cummins
			QSB4.5-C130	QSB6.7-C190	QSB6.7-C190	QSC8.3-C215	QSC8.3-C240	QSC8.3-C260	QSC8.3-C260
			4.5L 97KW 2200rpm	6.7L 142KW 2200rpm	6.7L 142KW 2200rpm	8.3L 160KW 2200rpm	8.3L 179KW 2200rpm	8.3L 194KW 2200rpm	8.3L 194KW 2200rpm
		Cylinder No.	4	6	6	6	6	6	6
Others	Transmission gears(Front/rear)		2\2	2\1	2\1	2\1	2\1	2\1	2\1
	Attachments working pressure	bar	160	160	160	180	180	180	180
	Attachments using oil amount	l/min	40	60	60	80	80	80	80

Diesel Forklift HARMAC

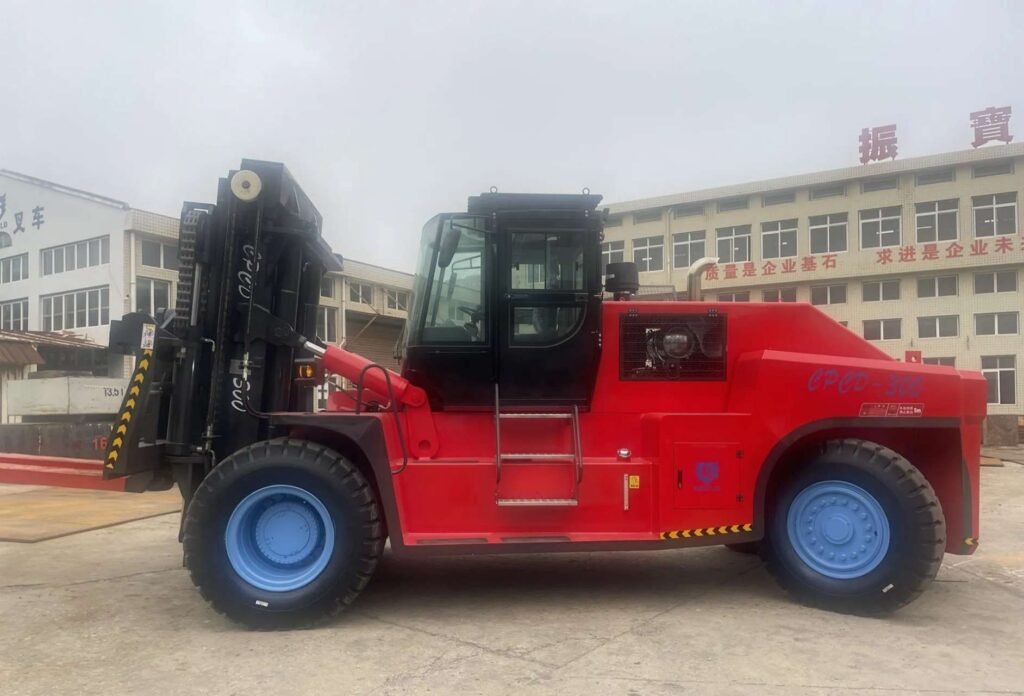

30 Ton Diesel Forklift

Model: FD300

Diesel forklift designed for heavy-duty material handling, featuring high load capacity, fuel efficiency, and stable performance for warehouse and construction applications.

Brand

HARMAC

Warranty

3 Years

ISO CE Certified

Worldwide Shipping

Strict QC
